NPC²CTF 2025 Reverse 方向复现

Week1

esrever

主逻辑

ida 中点击发现在 main 和 start 之间无限跳转，搜索字符串再 x 交叉引用到关键汇编，发现这部分汇编全部飘红，反编译失败

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
.text:0000000000001110                 jmp     loc_1286
.text:0000000000001115 ; ---------------------------------------------------------------------------
.text:0000000000001115                 movzx   ecx, cs:byte_4080
.text:000000000000111C                 jmp     short loc_1152
.text:000000000000111E ; ---------------------------------------------------------------------------
.text:000000000000111E
.text:000000000000111E loc_111E:                               ; CODE XREF: .text:loc_12B0↓j
.text:000000000000111E                 call    _printf
.text:0000000000001123                 xor     eax, eax
.text:0000000000001125                 lea     rdi, aRight     ; "Right!"
.text:000000000000112C                 jmp     short loc_115D
.text:000000000000112E ; ---------------------------------------------------------------------------
.text:000000000000112E
.text:000000000000112E loc_112E:                               ; CODE XREF: .text:0000000000001135↓j
.text:000000000000112E                 jz      short loc_1143
.text:0000000000001130                 cmp     [rax], bl
.text:0000000000001132                 movzx   ebx, byte ptr [rdx]
.text:0000000000001135                 jz      short loc_112E
.text:0000000000001137
.text:0000000000001137 loc_1137:                               ; CODE XREF: .text:000000000000115B↓j
.text:0000000000001137                 cmp     rdx, rcx
.text:000000000000113A                 add     rax, 1
.text:000000000000113E                 add     rdx, 1
.text:0000000000001142                 retn
.text:0000000000001143 ; ---------------------------------------------------------------------------
.text:0000000000001143
.text:0000000000001143 loc_1143:                               ; CODE XREF: .text:loc_112E↑j
.text:0000000000001143                 pop     rbx
.text:0000000000001144                 xor     eax, eax
.text:0000000000001146                 add     rsp, 100h
.text:000000000000114D                 call    _printf
.text:0000000000001152
.text:0000000000001152 loc_1152:                               ; CODE XREF: .text:000000000000111C↑j
.text:0000000000001152                 xor     eax, eax
.text:0000000000001154                 lea     rdi, aWrong     ; "Wrong!"
.text:000000000000115B                 jnz     short loc_1137
.text:000000000000115D
.text:000000000000115D loc_115D:                               ; CODE XREF: .text:000000000000112C↑j
.text:000000000000115D                                         ; .text:00000000000012D2↓j
.text:000000000000115D                 test    rax, rax
.text:0000000000001160                 lea     rcx, [rdx+18h]
.text:0000000000001164                 lea     rdx, unk_4040
.text:000000000000116B                 call    sub_188E
.text:0000000000001170                 movaps  xmmword ptr [rsp+0F0h], xmm0
.text:0000000000001178                 movdqa  xmm0, cs:xmmword_2260
.text:0000000000001180                 movaps  xmmword ptr [rsp+0E0h], xmm0
.text:0000000000001188                 movdqa  xmm0, cs:xmmword_2250
.text:0000000000001190                 movaps  xmmword ptr [rsp+0D0h], xmm0
.text:0000000000001198                 movdqa  xmm0, cs:xmmword_2240
.text:00000000000011A0                 movaps  xmmword ptr [rsp+0C0h], xmm0
.text:00000000000011A8                 movdqa  xmm0, cs:xmmword_2230
.text:00000000000011B0                 movaps  xmmword ptr [rsp+0B0h], xmm0
.text:00000000000011B8                 movdqa  xmm0, cs:xmmword_2220
.text:00000000000011C0                 movaps  xmmword ptr [rsp+0A0h], xmm0
.text:00000000000011C8                 movdqa  xmm0, cs:xmmword_2210
.text:00000000000011D0                 movaps  xmmword ptr [rsp+90h], xmm0
.text:00000000000011D8                 movdqa  xmm0, cs:xmmword_2200
.text:00000000000011E0                 movaps  xmmword ptr [rsp+80h], xmm0
.text:00000000000011E8                 movdqa  xmm0, cs:xmmword_21F0
.text:00000000000011F0                 movaps  xmmword ptr [rsp+70h], xmm0
.text:00000000000011F5                 movdqa  xmm0, cs:xmmword_21E0
.text:00000000000011FD                 movaps  xmmword ptr [rsp+60h], xmm0
.text:0000000000001202                 movdqa  xmm0, cs:xmmword_21D0
.text:000000000000120A                 movaps  xmmword ptr [rsp+50h], xmm0
.text:000000000000120F                 movdqa  xmm0, cs:xmmword_21C0
.text:0000000000001217                 movaps  xmmword ptr [rsp+40h], xmm0
.text:000000000000121C                 movdqa  xmm0, cs:xmmword_21B0
.text:0000000000001224                 movaps  xmmword ptr [rsp+30h], xmm0
.text:0000000000001229                 movdqa  xmm0, cs:xmmword_21A0
.text:0000000000001231                 movaps  xmmword ptr [rsp+20h], xmm0
.text:0000000000001236                 movdqa  xmm0, cs:xmmword_2190
.text:000000000000123E                 movaps  xmmword ptr [rsp+10h], xmm0
.text:0000000000001243                 movdqa  xmm0, cs:xmmword_2180
.text:000000000000124B                 movaps  xmmword ptr [rsp], xmm0
.text:000000000000124F                 mov     rdi, rbx
.text:0000000000001252                 mov     rsi, rsp
.text:0000000000001255                 movdqa  xmm0, cs:xmmword_2170
.text:000000000000125D                 jnz     short loc_127D
.text:000000000000125F
.text:000000000000125F loc_125F:                               ; CODE XREF: .text:000000000000126C↓j
.text:000000000000125F                                         ; .text:0000000000001284↓j ...
.text:000000000000125F                 test    sil, sil
.text:0000000000001262                 mov     dh, cl
.text:0000000000001264                 movzx   edx, sil
.text:0000000000001268                 movzx   esi, byte ptr [rax+1]
.text:000000000000126C                 jz      short loc_125F
.text:000000000000126E
.text:000000000000126E loc_126E:                               ; CODE XREF: .text:000000000000127B↓j
.text:000000000000126E                 test    cl, cl
.text:0000000000001270                 add     rax, 2
.text:0000000000001274                 movzx   ecx, byte ptr [rax+2]
.text:0000000000001278                 mov     [rax], dx
.text:000000000000127B                 jmp     short loc_126E
.text:000000000000127D ; ---------------------------------------------------------------------------
.text:000000000000127D
.text:000000000000127D loc_127D:                               ; CODE XREF: .text:000000000000125D↑j
.text:000000000000127D                 lea     rax, byte_4080
.text:0000000000001284                 jz      short loc_125F
.text:0000000000001286
.text:0000000000001286 loc_1286:                               ; CODE XREF: .text:0000000000001110↑j
.text:0000000000001286                 test    cl, cl
.text:0000000000001288                 movzx   ecx, cs:byte_4080
.text:000000000000128F                 jb      short loc_12B0
.text:0000000000001291                 cmp     rdx, rax
.text:0000000000001294                 mov     [rax+1], cl
.text:0000000000001297                 mov     [rdx-1], sil
.text:000000000000129B                 sub     rax, 1
.text:000000000000129F                 add     rdx, 1
.text:00000000000012A3                 movzx   esi, byte ptr [rax]
.text:00000000000012A6                 movzx   ecx, byte ptr [rdx]
.text:00000000000012A9                 lea     rdx, byte_4080
.text:00000000000012B0
.text:00000000000012B0 loc_12B0:                               ; CODE XREF: .text:000000000000128F↑j
.text:00000000000012B0                 jnb     loc_111E
.text:00000000000012B6                 cmp     rbx, rax
.text:00000000000012B9                 jnz     short loc_12C8
.text:00000000000012BB                 cmp     byte ptr [rax+1], 0
.text:00000000000012BF                 lea     rdx, [rdx+1]
.text:00000000000012C3                 mov     rax, rdx
.text:00000000000012C6                 jz      short loc_125F
.text:00000000000012C8
.text:00000000000012C8 loc_12C8:                               ; CODE XREF: .text:00000000000012B9↑j
.text:00000000000012C8                 mov     rdx, rbx
.text:00000000000012CB                 cmp     cs:byte_4080, 0
.text:00000000000012D2                 jz      loc_115D
.text:00000000000012D8                 test    al, al
.text:00000000000012DA                 call    sub_14FE
.text:00000000000012DF                 mov     rdi, rbx
.text:00000000000012E2                 call    ___isoc23_scanf
.text:00000000000012E7                 mov     rsi, rbx
.text:00000000000012EA                 xor     eax, eax
.text:00000000000012EC                 lea     rdi, aS         ; "%s"
.text:00000000000012F3                 call    _printf
.text:00000000000012F8                 sub     rsp, 100h
.text:00000000000012FF                 lea     rbx, byte_4080
.text:0000000000001306                 xor     eax, eax
.text:0000000000001308                 lea     rdi, aInputYourFlag ; "Input your flag:"
.text:000000000000130F                 push    rbx
.text:0000000000001310                 inc     edi

但是观察后不难发现这里的汇编顺序是反的，往后翻的话还能找到几处类似的地方
上面的那部分汇编的逻辑大致是:
读取用户输入到 byte_4080，
有一个字节交换
调用加密函数
字符串比较判断

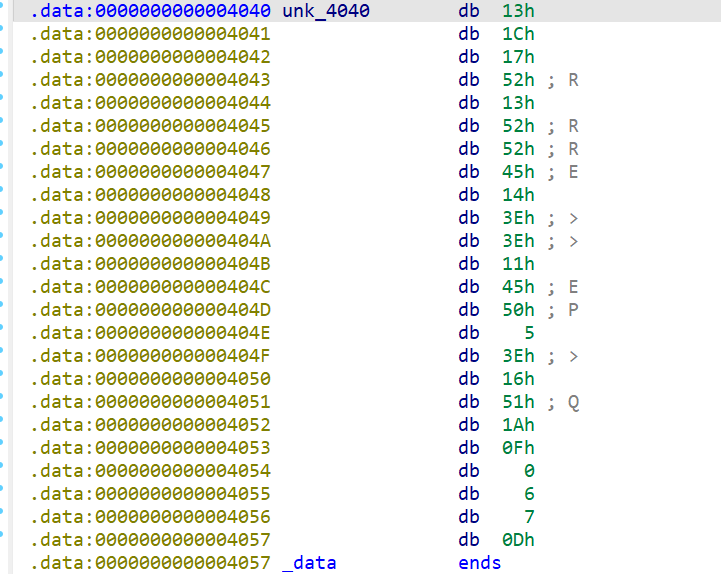

密文

密文在 unk_4040 处
提取出来为 131C175213525245143E3E114550053E16511A0F0006070D

flag 格式对比

第二处飘红的地方，比较输入的字符是否符合 flag{} 的格式

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
.text:0000000000001410 loc_1410:                               ; DATA XREF: sub_10B0+1E↑o
.text:0000000000001410                 mov     rsi, [rdx+0A8h]
.text:0000000000001417                 lea     rax, unk_1098
.text:000000000000141E                 mov     r8, rdx
.text:0000000000001421                 cmp     rsi, rax
.text:0000000000001424                 jb      short locret_1490
.text:0000000000001426                 lea     rdx, _term_proc
.text:000000000000142D                 cmp     rsi, rdx
.text:0000000000001430                 jnb     short locret_1490
.text:0000000000001432                 mov     rdx, rsi
.text:0000000000001435                 lea     r9, unk_2040
.text:000000000000143C                 sub     rdx, rax
.text:000000000000143F                 mov     rax, rdx
.text:0000000000001442                 mov     ecx, edx
.text:0000000000001444                 shr     rax, 3
.text:0000000000001448                 and     ecx, 7
.text:000000000000144B                 movsx   eax, byte ptr [r9+rax]
.text:0000000000001450                 bt      eax, ecx
.text:0000000000001453                 jnb     short locret_1490
.text:0000000000001455                 sub     rsi, 1
.text:0000000000001459                 sub     rdx, 1
.text:000000000000145D                 xor     edi, edi
.text:000000000000145F
.text:000000000000145F loc_145F:                               ; CODE XREF: .text:0000000000001487↓j
.text:000000000000145F                 mov     rax, rdx
.text:0000000000001462                 mov     ecx, edx
.text:0000000000001464                 sub     rdx, 1
.text:0000000000001468                 shr     rax, 3
.text:000000000000146C                 and     ecx, 7
.text:000000000000146F                 movsx   eax, byte ptr [r9+rax]
.text:0000000000001474                 sar     eax, cl
.text:0000000000001476                 and     eax, 1
.text:0000000000001479                 add     rdi, rax
.text:000000000000147C                 mov     rax, rsi
.text:000000000000147F                 sub     rsi, 1
.text:0000000000001483                 cmp     rdi, 2
.text:0000000000001487                 jnz     short loc_145F
.text:0000000000001489                 mov     [r8+0A8h], rax
.text:0000000000001490
.text:0000000000001490 locret_1490:                            ; CODE XREF: .text:0000000000001424↑j
.text:0000000000001490                                         ; .text:0000000000001430↑j ...
.text:0000000000001490                 retn
.text:0000000000001490 ; ---------------------------------------------------------------------------
.text:0000000000001491                 align 20h
.text:00000000000014A0 ; [00000001 BYTES: COLLAPSED FUNCTION nullsub_1. PRESS CTRL-NUMPAD+ TO EXPAND]
.text:00000000000014A1 ; ---------------------------------------------------------------------------
.text:00000000000014A1                 pop     rbp
.text:00000000000014A2                 pop     rbx
.text:00000000000014A3                 mov     eax, ebp
.text:00000000000014A5                 add     rsp, 8
.text:00000000000014A9                 xor     ebp, ebp
.text:00000000000014AB                 retn
.text:00000000000014AC ; ---------------------------------------------------------------------------
.text:00000000000014AC
.text:00000000000014AC loc_14AC:                               ; CODE XREF: .text:00000000000014EC↓j
.text:00000000000014AC                 pop     rbp
.text:00000000000014AD                 pop     rbx
.text:00000000000014AE                 mov     eax, ebp
.text:00000000000014B0                 add     rsp, 8
.text:00000000000014B4                 setz    bpl
.text:00000000000014B8
.text:00000000000014B8 loc_14B8:                               ; CODE XREF: .text:00000000000014BC↓j
.text:00000000000014B8                                         ; .text:00000000000014CA↓j ...
.text:00000000000014B8                 cmp     byte ptr [rbx+17h], 7Dh ; '}'
.text:00000000000014BC                 jnz     short loc_14B8
.text:00000000000014BE                 cmp     eax, 17h
.text:00000000000014C1                 call    _strlen
.text:00000000000014C6                 lea     rdi, [rdi+1]
.text:00000000000014CA                 jnz     short loc_14B8
.text:00000000000014CC                 cmp     byte ptr [rdi+4], 7Bh ; '{'
.text:00000000000014D0                 jnz     short loc_14B8
.text:00000000000014D2                 cmp     byte ptr [rdi+3], 67h ; 'g'
.text:00000000000014D6                 jnz     short loc_14B8
.text:00000000000014D8                 cmp     byte ptr [rdi+2], 61h ; 'a'
.text:00000000000014DC                 jnz     short loc_14B8
.text:00000000000014DE                 cmp     byte ptr [rdi+1], 6Ch ; 'l'
.text:00000000000014E2                 jnz     short loc_14B8
.text:00000000000014E4                 mov     rbx, rdi
.text:00000000000014E7                 cmp     byte ptr [rdi], 66h ; 'f'
.text:00000000000014EA                 xor     ebp, ebp
.text:00000000000014EC                 jz      short loc_14AC
.text:00000000000014EE                 test    rdi, rdi
.text:00000000000014F1                 sub     rsp, 8
.text:00000000000014F5                 push    rbx
.text:00000000000014F6                 push    rbp
.text:00000000000014F7                 vfnmadd213sd xmm7, xmm0, qword ptr [rsp+28h]

主要加密

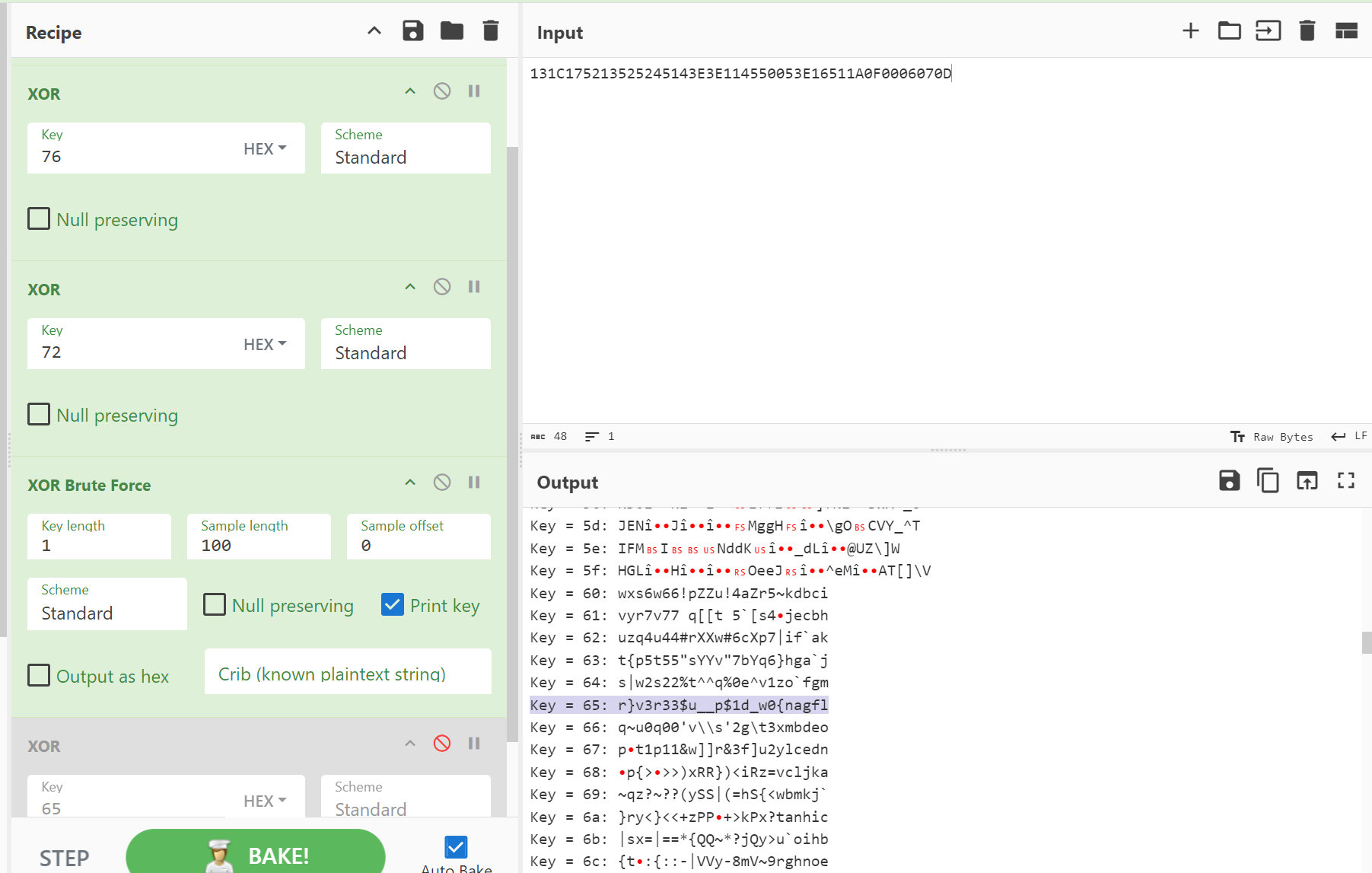

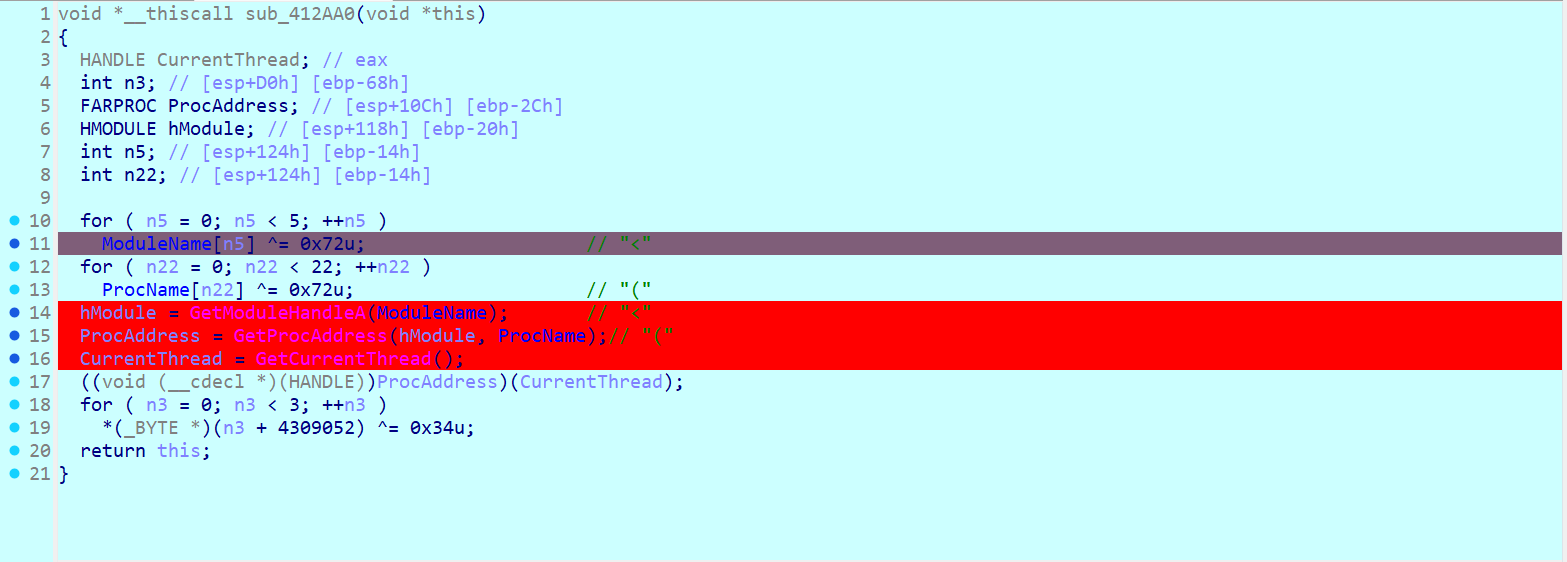

这部分可以看到有很多异或操作，并且是多次异或同一个值，一个 0x76 ,一个 0x72

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
.text:00000000000015BC loc_15BC:                               ; CODE XREF: .text:loc_1865↓j
.text:00000000000015BC                 pop     r15
.text:00000000000015BE                 pop     r14
.text:00000000000015C0                 pop     r13
.text:00000000000015C2                 pop     r12
.text:00000000000015C4                 pop     rbp
.text:00000000000015C5                 pop     rbx
.text:00000000000015C6                 mov     rax, rcx
.text:00000000000015C9                 add     rsp, 8
.text:00000000000015CD                 mov     byte ptr [rcx+rbp], 0
.text:00000000000015D1
.text:00000000000015D1 loc_15D1:                               ; CODE XREF: .text:0000000000001593↑j
.text:00000000000015D1                 movsxd  rbp, ebp
.text:00000000000015D4                 mov     [rcx+rax], dl
.text:00000000000015D7
.text:00000000000015D7 loc_15D7:                               ; CODE XREF: .text:00000000000015E1↓j
.text:00000000000015D7                                         ; .text:00000000000015F7↓j ...
.text:00000000000015D7                 xor     edx, 76h
.text:00000000000015DA                 movzx   edx, byte ptr [r12+rax]
.text:00000000000015DF                 cdqe
.text:00000000000015E1                 jle     short loc_15D7
.text:00000000000015E3                 cmp     ebp, eax
.text:00000000000015E5                 mov     [rcx+rdx], sil
.text:00000000000015E9                 xor     esi, 76h
.text:00000000000015EC                 movzx   esi, byte ptr [r12+rdx]
.text:00000000000015F1                 add     eax, 6
.text:00000000000015F4                 movsxd  rdx, edx
.text:00000000000015F7                 jle     short loc_15D7
.text:00000000000015F9                 cmp     ebp, edx
.text:00000000000015FB                 lea     edx, [rax+5]
.text:00000000000015FE                 mov     [rcx+rdx], sil
.text:0000000000001602                 xor     esi, 76h
.text:0000000000001605                 movzx   esi, byte ptr [r12+rdx]
.text:000000000000160A                 movsxd  rdx, edx
.text:000000000000160D                 jle     short loc_15D7
.text:000000000000160F                 cmp     ebp, edx
.text:0000000000001611                 lea     edx, [rax+4]
.text:0000000000001614                 mov     [rcx+rdx], sil
.text:0000000000001618                 xor     esi, 76h
.text:000000000000161B                 movzx   esi, byte ptr [r12+rdx]
.text:0000000000001620                 movsxd  rdx, edx
.text:0000000000001623                 jge     short loc_15D7
.text:0000000000001625                 cmp     edx, ebp
.text:0000000000001627                 lea     edx, [rax+3]
.text:000000000000162A                 mov     [rcx+rdx], sil
.text:000000000000162E                 xor     esi, 76h
.text:0000000000001631                 movzx   esi, byte ptr [r12+rdx]
.text:0000000000001636                 movsxd  rdx, edx
.text:0000000000001639                 jge     short loc_15D7
.text:000000000000163B                 cmp     edx, ebp
.text:000000000000163D                 lea     edx, [rax+2]
.text:0000000000001640                 mov     [rcx+rdx], sil
.text:0000000000001644                 xor     esi, 76h
.text:0000000000001647                 movzx   esi, byte ptr [r12+rdx]
.text:000000000000164C                 movsxd  rdx, edx
.text:000000000000164F                 jle     short loc_15D7
.text:0000000000001651                 cmp     ebp, edx
.text:0000000000001653                 lea     edx, [rax+1]
.text:0000000000001656                 mov     [rcx+rsi], dl
.text:0000000000001659                 xor     edx, 76h
.text:000000000000165C                 movzx   edx, byte ptr [r12+rsi]
.text:0000000000001661                 movsxd  rsi, eax
.text:0000000000001664                 jz      loc_15D7
.text:000000000000166A
.text:000000000000166A loc_166A:                               ; CODE XREF: .text:000000000000168B↓j
.text:000000000000166A                 and     esi, 7
.text:000000000000166D                 add     eax, edx
.text:000000000000166F                 and     edx, 0FFFFFFF8h
.text:0000000000001672                 mov     edx, esi
.text:0000000000001674                 movq    qword ptr [rcx+rdx], xmm0
.text:0000000000001679                 pxor    xmm0, xmm1
.text:000000000000167D                 movq    xmm0, qword ptr [r12+rdx]
.text:0000000000001683                 movq    xmm1, qword ptr cs:xmmword_2160
.text:000000000000168B                 jbe     short loc_166A
.text:000000000000168D                 cmp     edi, 6
.text:0000000000001690                 lea     edi, [rsi-1]
.text:0000000000001693                 sub     esi, edx
.text:0000000000001695                 mov     esi, ebp
.text:0000000000001697                 jz      loc_15D7
.text:000000000000169D
.text:000000000000169D loc_169D:                               ; CODE XREF: .text:0000000000001597↑j
.text:000000000000169D                 cmp     eax, ebp
.text:000000000000169F                 mov     edx, eax
.text:00000000000016A1                 and     eax, 0FFFFFFF0h
.text:00000000000016A4                 mov     eax, ebp
.text:00000000000016A6                 jnz     short loc_16C1
.text:00000000000016A8                 cmp     rdx, rax
.text:00000000000016AB                 add     rax, 10h
.text:00000000000016AF                 movups  xmmword ptr [rcx+rax], xmm0
.text:00000000000016B3                 pxor    xmm0, xmm1
.text:00000000000016B7                 movdqu  xmm0, xmmword ptr [r12+rax]
.text:00000000000016BD                 shl     rdx, 4
.text:00000000000016C1
.text:00000000000016C1 loc_16C1:                               ; CODE XREF: .text:00000000000016A6↑j
.text:00000000000016C1                 shr     edx, 4
.text:00000000000016C4                 xor     eax, eax
.text:00000000000016C6                 movdqa  xmm1, cs:xmmword_2160
.text:00000000000016CE                 mov     edx, ebp
.text:00000000000016D0                 jbe     loc_15A5
.text:00000000000016D6                 cmp     esi, 0Eh
.text:00000000000016D9                 jnz     short loc_16F2
.text:00000000000016DB                 cmp     eax, 0FFFFFFFFh
.text:00000000000016DE                 sub     rax, 1
.text:00000000000016E2                 mov     [r12+rax], dl
.text:00000000000016E6                 xor     edx, 65h
.text:00000000000016E9                 movzx   edx, byte ptr [r13+rax+0]
.text:00000000000016EF                 movsxd  rax, ebx
.text:00000000000016F2
.text:00000000000016F2 loc_16F2:                               ; CODE XREF: .text:00000000000016D9↑j
.text:00000000000016F2                 mov     [r13+rax+0], dl
.text:00000000000016F7
.text:00000000000016F7 loc_16F7:                               ; CODE XREF: .text:0000000000001701↓j
.text:00000000000016F7                                         ; .text:0000000000001718↓j ...
.text:00000000000016F7                 xor     edx, 72h
.text:00000000000016FA                 movzx   edx, byte ptr [r14+rax]
.text:00000000000016FF                 cdqe
.text:0000000000001701                 jle     short loc_16F7
.text:0000000000001703                 cmp     ebp, eax
.text:0000000000001705                 mov     [r13+rdx+0], dil
.text:000000000000170A                 xor     edi, 72h
.text:000000000000170D                 movzx   edi, byte ptr [r14+rdx]
.text:0000000000001712                 add     eax, 6
.text:0000000000001715                 movsxd  rdx, edx
.text:0000000000001718                 jle     short loc_16F7
.text:000000000000171A                 cmp     ebp, edx
.text:000000000000171C                 lea     edx, [rax+5]
.text:000000000000171F                 mov     [r13+rdx+0], dil
.text:0000000000001724                 xor     edi, 72h
.text:0000000000001727                 movzx   edi, byte ptr [r14+rdx]
.text:000000000000172C                 movsxd  rdx, edx
.text:000000000000172F                 jle     short loc_16F7
.text:0000000000001731                 cmp     ebp, edx
.text:0000000000001733                 lea     edx, [rax+4]
.text:0000000000001736                 mov     [r13+rdx+0], dil
.text:000000000000173B                 xor     edi, 72h
.text:000000000000173E                 movzx   edi, byte ptr [r14+rdx]
.text:0000000000001743                 movsxd  rdx, edx
.text:0000000000001746                 jle     short loc_16F7
.text:0000000000001748                 cmp     ebp, edx
.text:000000000000174A                 lea     edx, [rax+3]
.text:000000000000174D                 mov     [r13+rdx+0], dil
.text:0000000000001752                 xor     edi, 72h
.text:0000000000001755                 movzx   edi, byte ptr [r14+rdx]
.text:000000000000175A                 movsxd  rdx, edx
.text:000000000000175D                 jle     short loc_16F7
.text:000000000000175F                 cmp     ebp, edx
.text:0000000000001761                 lea     edx, [rax+2]
.text:0000000000001764                 mov     [r13+rdx+0], dil
.text:0000000000001769                 xor     edi, 72h
.text:000000000000176C                 movzx   edi, byte ptr [r14+rdx]
.text:0000000000001771                 movsxd  rdx, edx
.text:0000000000001774                 jle     short loc_16F7
.text:0000000000001776                 cmp     ebp, edx
.text:0000000000001778                 lea     edx, [rax+1]
.text:000000000000177B                 mov     [r13+rdi+0], dl
.text:0000000000001780                 xor     edx, 72h
.text:0000000000001783                 movzx   edx, byte ptr [r14+rdi]
.text:0000000000001788                 movsxd  rdi, eax
.text:000000000000178B                 jz      loc_16F7
.text:0000000000001791
.text:0000000000001791 loc_1791:                               ; CODE XREF: .text:00000000000017B4↓j
.text:0000000000001791                 and     edi, 7
.text:0000000000001794                 add     eax, edx
.text:0000000000001796                 and     edx, 0FFFFFFF8h
.text:0000000000001799                 mov     edx, edi
.text:000000000000179B                 movq    qword ptr [r13+rdx+0], xmm0
.text:00000000000017A2                 pxor    xmm0, xmm1
.text:00000000000017A6                 movq    xmm0, qword ptr [r14+rdx]
.text:00000000000017AC                 movq    xmm1, qword ptr cs:xmmword_2150
.text:00000000000017B4                 jbe     short loc_1791
.text:00000000000017B6                 cmp     r8d, 6
.text:00000000000017BA                 lea     r8d, [rdi-1]
.text:00000000000017BE                 sub     edi, edx
.text:00000000000017C0                 mov     edi, ebp
.text:00000000000017C2                 jz      loc_16F7
.text:00000000000017C8
.text:00000000000017C8 loc_17C8:                               ; CODE XREF: .text:00000000000015A0↑j
.text:00000000000017C8                 cmp     ebp, eax
.text:00000000000017CA                 mov     edx, eax
.text:00000000000017CC                 and     eax, 0FFFFFFF0h
.text:00000000000017CF                 mov     eax, ebp
.text:00000000000017D1                 jnz     short loc_17EE
.text:00000000000017D3                 cmp     rax, rdx
.text:00000000000017D6                 add     rax, 10h
.text:00000000000017DA                 movups  xmmword ptr [r13+rax+0], xmm0
.text:00000000000017E0                 pxor    xmm0, xmm1
.text:00000000000017E4                 movdqu  xmm0, xmmword ptr [r14+rax]
.text:00000000000017EA                 shl     rdx, 4
.text:00000000000017EE
.text:00000000000017EE loc_17EE:                               ; CODE XREF: .text:00000000000017D1↑j
.text:00000000000017EE                 shr     edx, 4
.text:00000000000017F1                 xor     eax, eax
.text:00000000000017F3                 movdqa  xmm1, cs:xmmword_2150
.text:00000000000017FB                 mov     edx, ebp
.text:00000000000017FD                 jbe     loc_15AE
.text:0000000000001803                 cmp     esi, 0Eh
.text:0000000000001806                 lea     esi, [rbp-1]
.text:0000000000001809                 jz      loc_15D7
.text:000000000000180F                 test    ebp, ebp
.text:0000000000001811                 jz      loc_159C
.text:0000000000001817                 test    rax, rax
.text:000000000000181A                 mov     rcx, rax
.text:000000000000181D                 call    _malloc
.text:0000000000001822                 mov     rdi, r15
.text:0000000000001825                 jz      loc_159C
.text:000000000000182B                 test    rax, rax
.text:000000000000182E                 mov     r12, rax
.text:0000000000001831                 call    _malloc
.text:0000000000001836                 mov     rdi, r15
.text:0000000000001839                 jz      loc_159C
.text:000000000000183F                 test    rax, rax
.text:0000000000001842                 mov     r13, rax
.text:0000000000001845                 call    _malloc
.text:000000000000184A                 mov     rdi, r15
.text:000000000000184D                 movsxd  r15, r15d
.text:0000000000001850
.text:0000000000001850 loc_1850:                               ; CODE XREF: .text:00000000000015A9↑j
.text:0000000000001850                 lea     r15d, [rbx+2]
.text:0000000000001854                 jnz     short loc_1865
.text:0000000000001856                 cmp     byte ptr [rax-1], 0
.text:000000000000185A                 add     ebp, 1
.text:000000000000185D                 mov     ebx, ebp
.text:000000000000185F                 add     rax, 1
.text:0000000000001863                 xor     ebp, ebp
.text:0000000000001865
.text:0000000000001865 loc_1865:                               ; CODE XREF: .text:0000000000001854↑j
.text:0000000000001865                 jz      loc_15BC
.text:000000000000186B                 cmp     byte ptr [rdi], 0
.text:000000000000186E                 sub     rsp, 8
.text:0000000000001872                 push    rbx
.text:0000000000001873                 push    rbp
.text:0000000000001874                 push    r12
.text:0000000000001876                 push    r13
.text:0000000000001878                 mov     r14, rdi
.text:000000000000187B                 push    r14
.text:000000000000187D                 lea     rax, [rdi+1]
.text:0000000000001881                 push    r15
.text:0000000000001883                 jz      loc_1595
.text:0000000000001889                 test    rdi, rdi
.text:000000000000188C                 test    edx, edx

解密

用密文异或 0x76 和 0x72 之后没得到可见明文字符，爆破出来第三个异或值是 0x65(后来在汇编中异或 0x76 和 异或 0x72 之间的部分看到有一个异或 0x65)

得到 r}v3r33$u__p$1d_w0{nagfl,可以看出这个是从后往前两个字符一组交换顺序，整理出来 flag 是
flag{nw0d_$1_pu_3$r3v3r}

原理

做题的时候就很好奇，为什么汇编是反着的，但是程序却能正常运行，解惑参考这篇文章

cccc

处理混淆

C# 逆向，动调之后基本能确定主要逻辑在 dll 中，被confuser 混淆了，先用 de4dot 去一下混淆

1
2
3
4
5
D:\CTF\Reverse\de4dot-Reactor5.0>de4dot.exe D:\aaa\NPCCTF\cccc\ccccapp.dll
Detected Unknown Obfuscator (D:\aaa\NPCCTF\cccc\ccccapp.dll)
Cleaning D:\aaa\NPCCTF\cccc\ccccapp.dll
Renaming all obfuscated symbols
Saving D:\aaa\NPCCTF\cccc\ccccapp-cleaned.dll

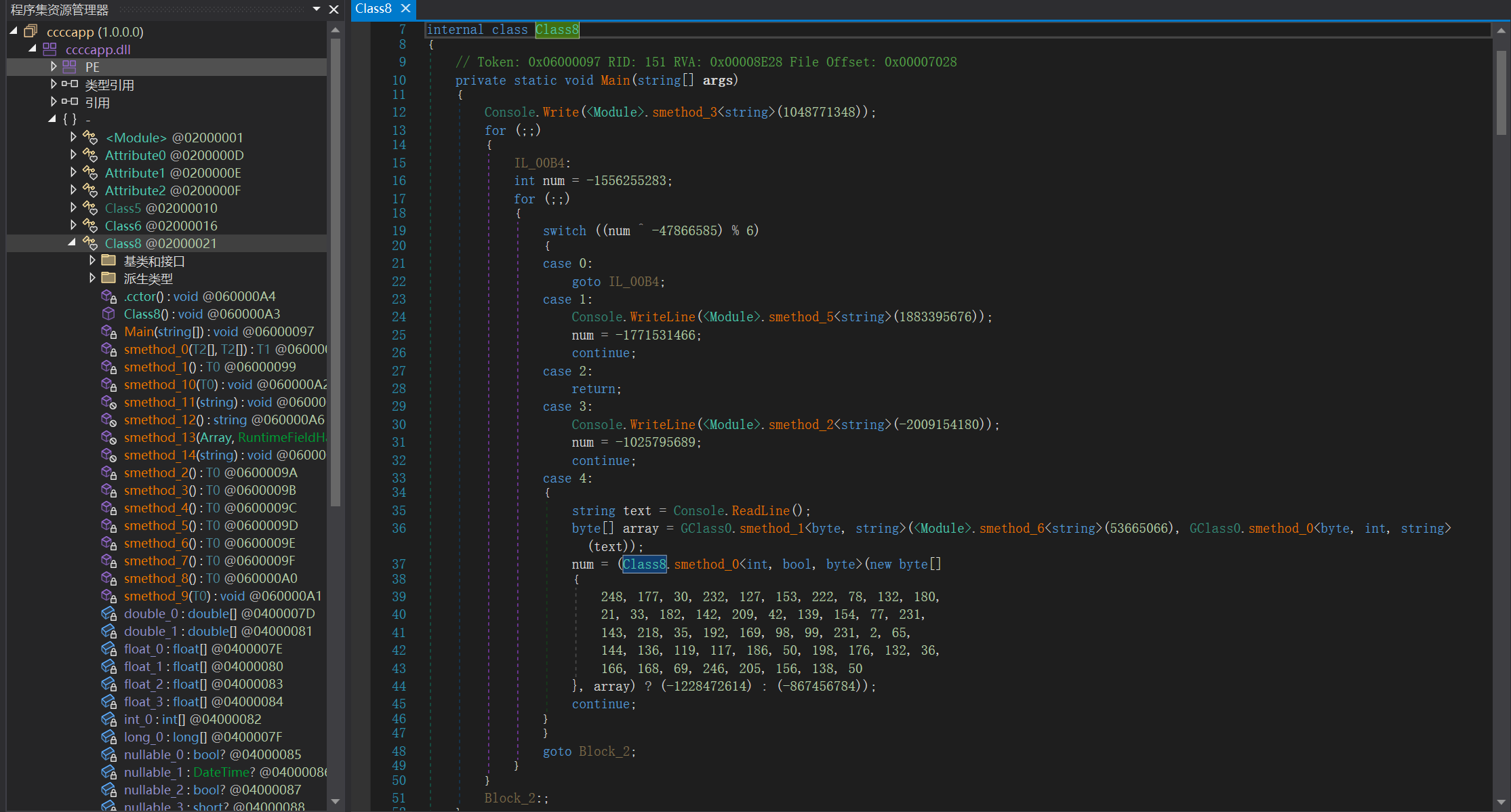

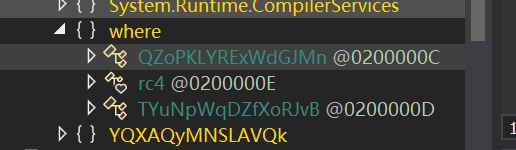

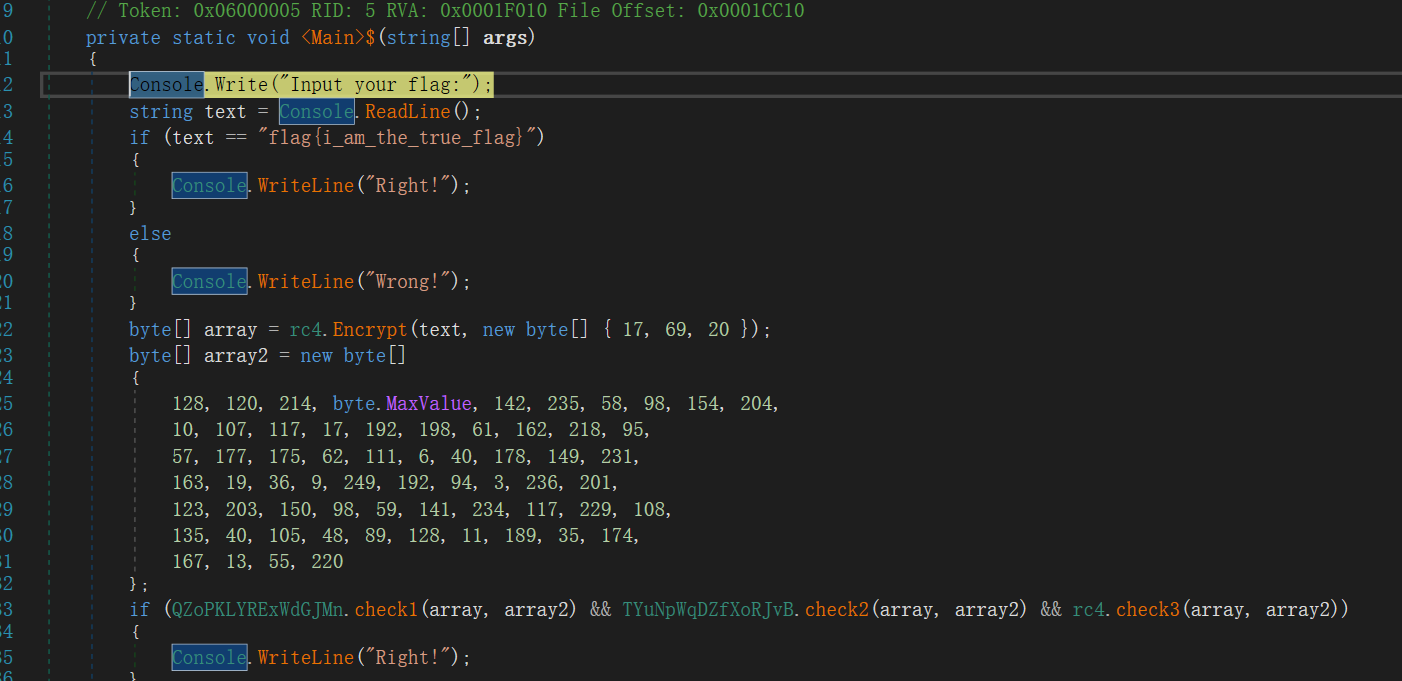

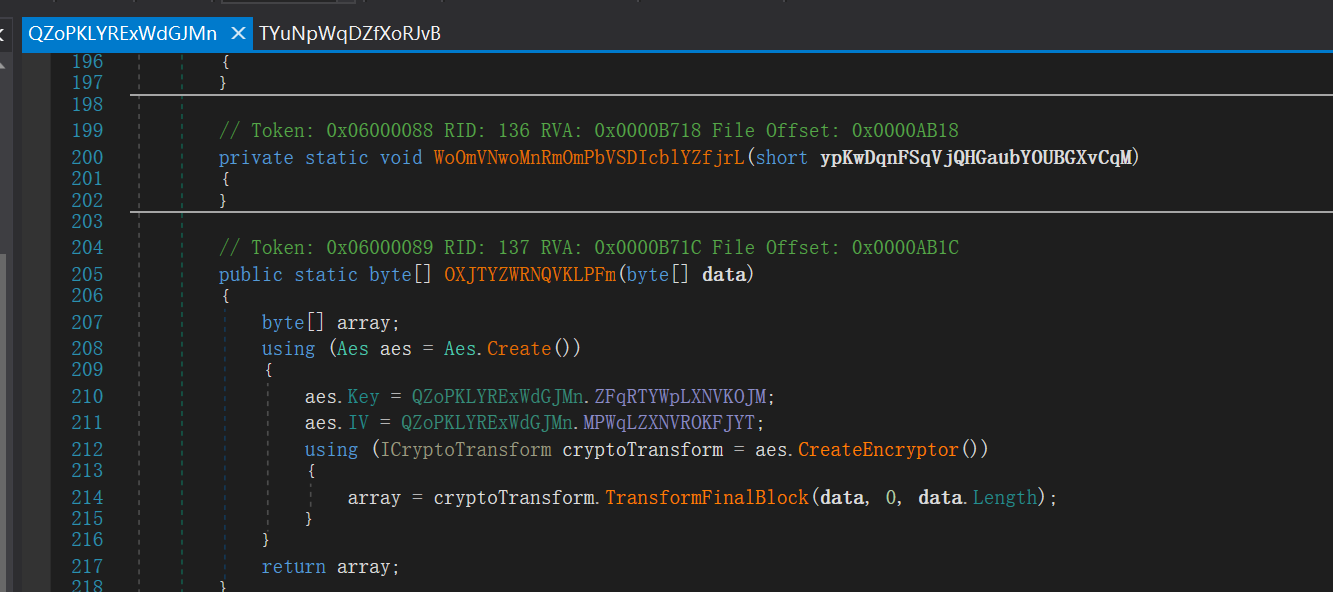

然后用 dnSpy 打开，发现关键类

可以看到它读取了输入之后进行了一系列操作，后面的数据应该是密文了

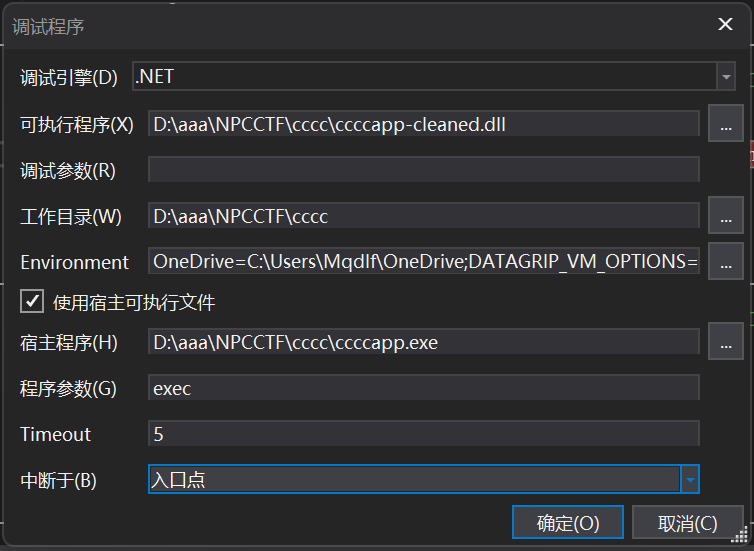

动调找程序逻辑，我最开始直接调试会报错，后面设置成这样就能调了(选中使用宿主可执行文件)

动调梳理

逐语句(F11) 一直调

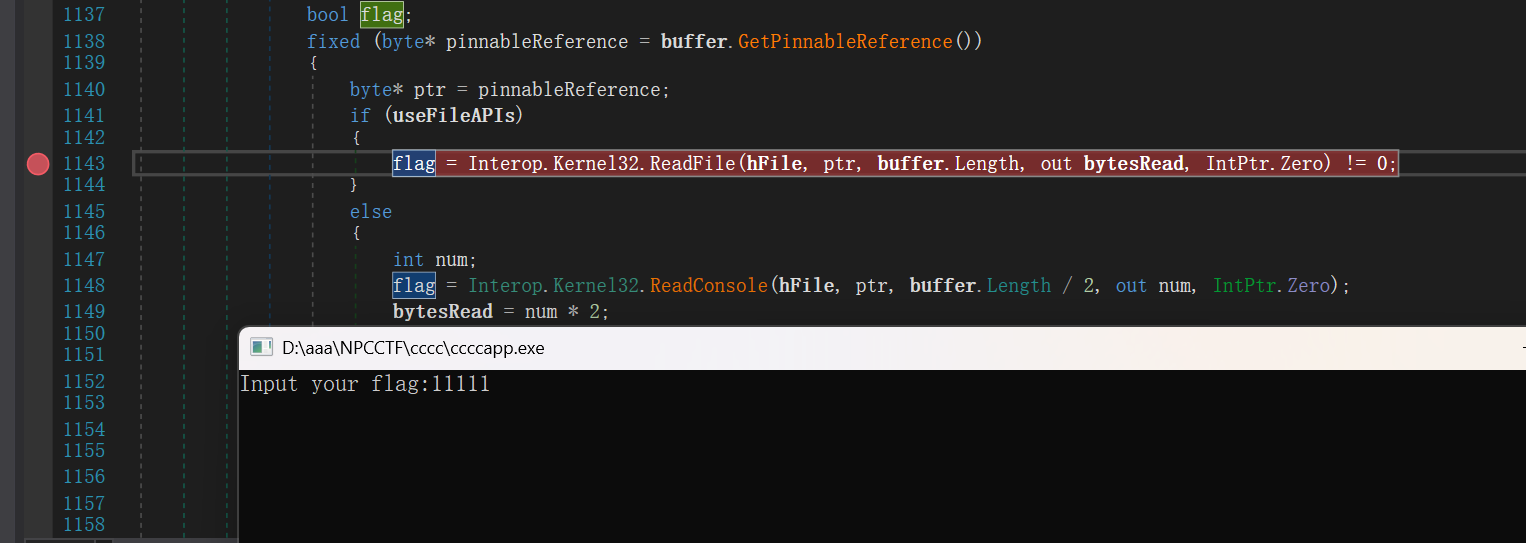

到达用户输入的地方

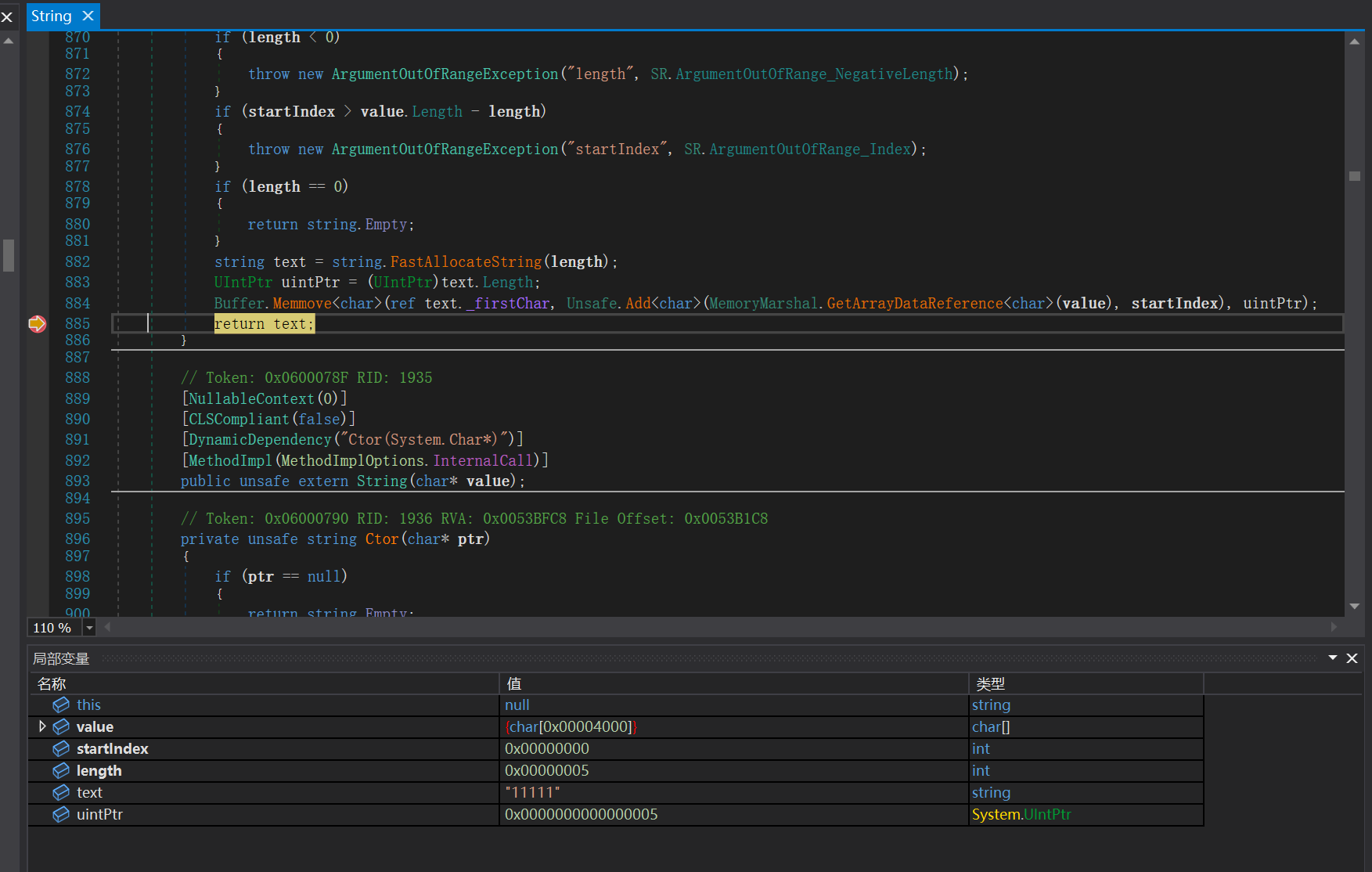

这里在读取输入

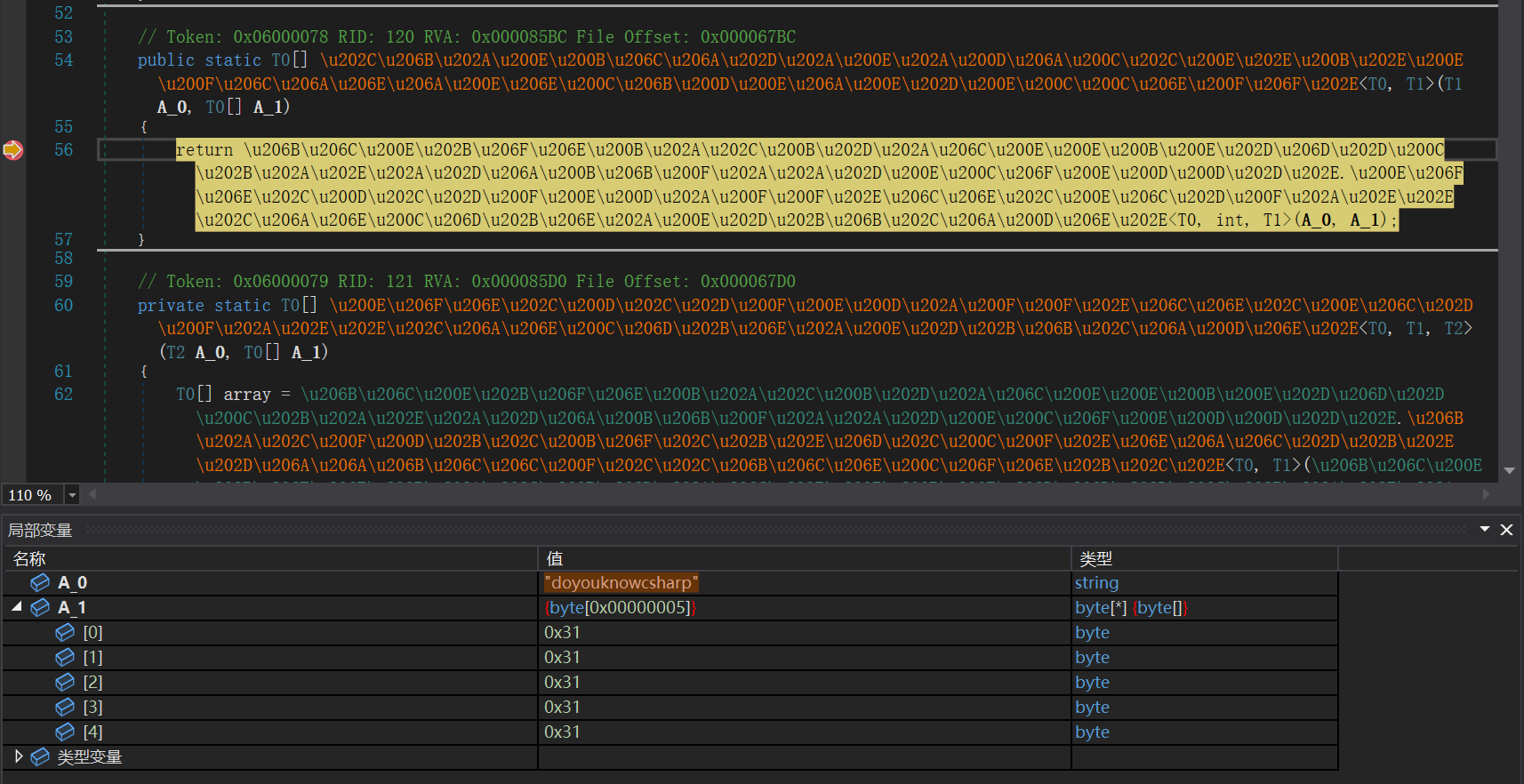

找到一串字符 doyouknowcsharp,和输入的内容传入同一个函数，推测这个字符串应该是密钥

找到加密逻辑，魔改 RC4，array2[t3] = (byte)(A_1[t3] ^ array[(array[t] + array[t2]) % 256] ^ 100); 这部分多了一个异或 100

再往后就是比较完输出 Wrong

解密

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
def rc4_cccc_dec(cipher,key_str):
    S = list(range(256))
    j = 0
    key = [ord(c) for c in key_str]

    for i in range(256):
        j = (j + S[i] + key[i % len(key)]) % 256
        S[i], S[j] = S[j], S[i]

    i = j = 0
    plain = []
    for c in cipher:
        i = (i + 1) % 256
        j = (j + S[i]) % 256
        S[i], S[j] = S[j], S[i]
        K = S[(S[i] + S[j]) % 256]

        plain.append(c ^ K ^ 100)
    return bytes(plain)

cipher = [
    0xf8, 0xb1, 0x1e, 0xe8, 0x7f, 0x99, 0xde, 0x4e,
    0x84, 0xb4, 0x15, 0x21, 0xb6, 0x8e, 0xd1, 0x2a,
    0x8b, 0x9a, 0x4d, 0xe7, 0x8f, 0xda, 0x23, 0xc0,
    0xa9, 0x62, 0x63, 0xe7, 0x02, 0x41, 0x90, 0x88,
    0x77, 0x75, 0xba, 0x32, 0xc6, 0xb0, 0x84, 0x24,
    0xa6, 0xa8, 0x45, 0xf6, 0xcd, 0x9c, 0x8a, 0x32
]

key_str = "doyouknowcsharp"
flag = rc4_cccc_dec(cipher,key_str)
print("Flag is :",flag)

flag 为 flag{y0u_r34lly_kn0w_m@ny_pr0gr@mm1ng_l@ngu@g3$}

ugly_world

处理混淆

main 函数初看很简单

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
__int64 __fastcall main(int a1, char **a2, char **a3)
{
  _BYTE input[104]; // [rsp+0h] [rbp-70h] BYREF
  unsigned __int64 v5; // [rsp+68h] [rbp-8h]

  v5 = __readfsqword(0x28u);
  puts("please input your flag:");
  __isoc99_scanf("%40s", input);
  sub_55555555E656((__int64)input, (__int64)&qword_555555561020);
  if ( (unsigned __int8)sub_55555555E6A4(input, &byte_555555561040) )
    sub_55555555E705();
  else
    sub_55555555E71F();
  return 0LL;
}

读取了用户输入，sub_55555555E656 对 input 和地址 555555561020 处的数据(0x5566778811223344,0xCCDDEEFF9900AABB)进行处理，sub_55555555E656 函数中是一个循环，其中的 sub_555555555401 是一个很大的经过混淆了的函数,byte_555555561040 的位置是密文 0x0BD3BE58, 0xBE73BBFB, 0xC8C8AF4E, 0x0B3C7D86, 0xC0257C09, 0x1D8FE0B0, 0x8837180C, 0xF5CF9D23, 0xB7A8B599，0xAE630F3D,sub_55555555E705 输出 your are right!,else 输出 you are wrong!

1
2
3
4
5
6
7
8
9
__int64 __fastcall sub_55555555E656(__int64 a1, __int64 a2)
{
  __int64 result; // rax
  int i; // [rsp+1Ch] [rbp-4h]

  for ( i = 0; i <= 9; i += 2 )
    result = sub_555555555401((unsigned int *)(a1 + 4LL * i), a2);
  return result;
}

对 sub_555555555401 中的函数逐个分析
sub_189 -> a1 + a2 -> ADD

1
2
3
4
5
6
7
8
9
10
11
12
13
__int64 __fastcall sub_555555555189(unsigned int a1, int a2)
{
  int v5;

  while (a2)
  {
    v5 = 2 * (a2 & a1); // 计算进位
    a1 ^= a2;           // 无进位加法 (异或)
    a2 = v5;            // 更新进位
  }
  return a1;
}

sub_1BB -> a1 - a2 -> SUB

1
2
3
4
5
6
7
__int64 __fastcall sub_5555555551BB(unsigned int a1, int a2)
{
  int v3;

  v3 = ADD(~a2, 1);   // 计算 -a2
  return ADD(a1, v3); // a1 + (-a2)
}

sub_2BF -> a1 >> a2 -> SHR

1
2
3
4
5
6
7
8
__int64 __fastcall sub_5555555552BF(unsigned int a1, signed int a2)
{
  signed int i; // [rsp+14h] [rbp-4h]

  for ( i = 0; i < a2; i = ADD(i, 1) )
    a1 = SUB(a1 & 0xFFFFFFFE, (int)(a1 & 0xFFFFFFFE) / 2);
  return a1;
}

sub_336 -> 把内存里连续的 4 个字节，拼成一个 小端序的 32 位整数 -> byte2dword

1
2
3
4
5
6
7
8
__int64 __fastcall sub_555555555366(__int64 a1, int a2)
{
  return
      (*(unsigned __int8 *)(4 * a2 + 1LL + a1) << 8)  |  // 第2个字节 → <<8
      (*(unsigned __int8 *)(4 * a2 + 2LL + a1) << 16) |  // 第3个字节 → <<16
      (*(unsigned __int8 *)(4 * a2 + 3LL + a1) << 24) |  // 第4个字节 → <<24
      (unsigned int)*(unsigned __int8 *)(4 * a2 + a1);  // 第1个字节 (低8位)
}

sub_31A -> a1 << a2 -> SHL

1
2
3
4
5
6
7
8
__int64 __fastcall sub_55555555531A(unsigned int a1, int a2)
{
  unsigned int i;

  for ( i = 0; (int)i < a2; i = ADD(i, 1LL) )
    a1 = ADD(a1, a1);
  return a1;
}

sub_1F2 -> (a1 ^ a2) & 1 -> XOR1

1
2
3
4
__int64 __fastcall sub_5555555551F2(char a1, char a2)
{
  return (unsigned int)(((a1 & 1) + (a2 & 1)) % 2);
}

sub_21D -> a1 ^ a2 -> XOR

1
2
3
4
5
6
7
8
9
10
11
12
13
14
__int64 __fastcall sub_55555555521D(int a1, int a2)
{
  unsigned int v5 = 0;
  int i;

  for ( i = 0; i <= 31; ++i )
  {
    int v7 = XOR1((unsigned int)a1, (unsigned int)a2); // 取最低位异或
    v5 = ADD(v5, v7 << i);                             // 累加到结果的第 i 位
    a1 >>= 1;
    a2 >>= 1;
  }
  return v5;
}

sub_28B -> (a1 ^ a2 ^ a3) -> XOR3

1
2
3
4
5
6
7
__int64 __fastcall sub_55555555528B(unsigned int a1, unsigned int a2, unsigned int a3)
{
  unsigned int v3; // eax

  v3 = XOR(a1, a2);
  return XOR(v3, a3);
}

修改之后反编译界面如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
m0 = *input;
m1 = input[1];
//循环1
o1 = ADD(0, 0x3CA6F3E);
k1 = byte2dword(a2, 1);
v3 = SHR(m1, 1);
v4 = ADD(v3, k1);
v5 = ADD(m1, o1);
k2 = byte2dword(a2, 0);
v7 = SHL(m1, 1);
v8 = ADD(v7, k2);
v9 = XOR3(v8, v5, v4);
j = ADD(m0, v9);
k3 = byte2dword(a2, 3);
v11 = SHR(j, 1);
v12 = ADD(v11, k3);
v13 = ADD(j, o1);
v14 = byte2dword(a2, 2);
v15 = SHL(j, 1);
v16 = ADD(v15, v14);
v17 = XOR3(v16, v13, v12);
o2 = ADD(m1, v17);
//循环2
c2 = ADD(o1, 0xF2E1C7F1);
v18 = byte2dword(a2, 1);
v19 = SHR(o2, 3);
v20 = ADD(v19, v18);
v21 = ADD(o2, c2);
v22 = byte2dword(a2, 0);
v23 = SHL(o2, 4);
v24 = ADD(v23, v22);
v25 = XOR3(v24, v21, v20);
m0a = ADD(j, v25);
v26 = byte2dword(a2, 3);
v27 = SHR(m0a, 3);
v28 = ADD(v27, v26);
v29 = ADD(m0a, c2);
v30 = byte2dword(a2, 2);
v31 = SHL(m0a, 4);
v32 = ADD(v31, v30);
v33 = XOR3(v32, v29, v28);
m1a = ADD(o2, v33);
//循环3
o1a = ADD(c2, 2040670275);
v34 = byte2dword(a2, 1);
v35 = SHR(m1a, 4);
v36 = ADD(v35, v34);
v37 = ADD(m1a, o1a);
v38 = byte2dword(a2, 0);
v39 = SHL(m1a, 6);
v40 = ADD(v39, v38);
v41 = XOR3(v40, v37, v36);
m0b = ADD(m0a, v41);
v42 = byte2dword(a2, 3);
v43 = SHR(m0b, 4);
v44 = ADD(v43, v42);
v45 = ADD(m0b, o1a);
v46 = byte2dword(a2, 2);
v47 = SHL(m0b, 6);
v48 = ADD(v47, v46);
v49 = XOR3(v48, v45, v44);
m1b = ADD(m1a, v49);
//循环4
o1b = ADD(o1a, -729809763);
v50 = byte2dword(a2, 1);
v51 = SHR(m1b, 3);
v52 = ADD(v51, v50);
v53 = ADD(m1b, o1b);
v54 = byte2dword(a2, 0);
v55 = SHL(m1b, 6);
v56 = ADD(v55, v54);
v57 = XOR3(v56, v53, v52);
m0c = ADD(m0b, v57);
v58 = byte2dword(a2, 3);
v59 = SHR(m0c, 3);
v60 = ADD(v59, v58);
v61 = ADD(m0c, o1b);
v62 = byte2dword(a2, 2);
v63 = SHL(m0c, 6);
v64 = ADD(v63, v62);
v65 = XOR3(v64, v61, v60);
m1c = ADD(m1b, v65);
...
*input = m0ew;
result = (unsigned int)result;
input[1] = result;
return result;

加密同构

梳理第一个循环结构一下可以得到

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
m0 = input[0]
m1 = input[1]
c1 = 0x3CA6F3E
k1 = 0x55667788
v3 = m1 >> 1
v4 = (m1 >> 1) + k1
v5 = m1 + 0x3CA6F3E
k2 = 0x11223344
v7 = m1 << 1
v8 = (m1 << 1) + k2
v9 = ((m1 << 1) + k2) ^ (m1 + 0x3CA6F3E) ^ ((m1 >> 1) + k1)
o1 = m0 + v9
k3 = 0xCCDDEEFF
v11 = o1 >> 1
v12 = (o1 >> 1) + k3
v13 = o1 + k1
k4 = 0x9900AABB
v15 = o1 << 1
v16 = (o1 << 1) + k4
v17 = ((o1 << 1) + k4) ^ (o1 + k1) ^ ((o1 >> 1) + k3)
o2 = m1 + v17

可以看出这个这是一个魔改的 TEA，一共有 128 轮，每轮的 delta 都不一样，并且每轮左移右移的数也不一样
提取出每一轮的 delta 和 移位值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
delta = [
    0x3CA6F3E, 0xF2E1C7F1, 0x79A22843, 0xD47FFC9D, 0xDD10F4C, 0x1DC368A1, 0x11B15F8A, 0x9469B3CD,
    0x45D6DB5F, 0xBC6EE006, 0xA76D8146, 0xD542E337, 0x242E1155, 0xAA7F93DD, 0x88625ECB, 0x3738E499,
    0xCEF27BB0, 0x134FF759, 0x358CA57E, 0x3461F310, 0x28540EE7, 0x81C0B176, 0xF725EE9C, 0xAF823A69,
    0x61E8ECB3, 0xF4919548, 0x6AF44E11, 0x866162F3, 0x867F7E65, 0x6B26444C, 0x10216241, 0x9C1BA3CD,
    0x1268FEAD, 0xF462B3B5, 0x5F7DE761, 0x72EAD5B6, 0xFBCE0C75, 0x44EF4142, 0x54DCC3C0, 0xAFFE805D,
    0xC8833729, 0x3C944186, 0x261169A, 0xB547EA2F, 0x9B499585, 0xFE0190BF, 0x1EC74BE7, 0xAFC9292E,
    0xC32F4EEF, 0x420A1A4, 0x94BEAB2B, 0xA0693238, 0x4DD5ADC1, 0x9F658F31, 0x1732EA46, 0x76BEE7DD,
    0x12C63095, 0x9C202C7C, 0xAC9BB4C4, 0x1762AEAF, 0xCA41991E, 0xC0480F85, 0xBF534431, 0xF1C2780E,
    0x990A7D6F, 0x69D22B81, 0x34DDECDE, 0x11ECD8F8, 0x22BB55D2, 0xFFA55B0, 0x6CC1AFBF, 0xA5610F61,
    0x13190C95, 0xE09A5D29, 0xE7514731, 0x9AE21D7A, 0xB8D90F5A, 0x4C7299A9, 0xC4FDB94E, 0xA6475083,
    0xBFB62E5, 0x8F7F77EB, 0xDA2568BB, 0x55C4DA9E, 0xC2932973, 0xCBC60B6D, 0xC46720FD, 0x2046D79D,
    0x629CBD81, 0x932B1F48, 0x72ED29C0, 0xF4B566D3, 0xCBC53B21, 0x7836C87B, 0xBA4357B1, 0xCFD332E2,
    0x4D488FCB, 0xA06DEFBF, 0x68211846, 0xC17F878D, 0x33B10E2C, 0xCFA0E756, 0x4C3C0691, 0x870BE107,
    0x55B3FAF0, 0xFD39F8D7, 0x4B9A7795, 0x188CFA42, 0xAA79A09D, 0x620CF186, 0xEFDE898A, 0x2FA95D43,
    0xD67359DB, 0x8625BC1B, 0x7A1A3BBC, 0xE6ECEF6C, 0xBA27A5C6, 0x559FE417, 0xF01DF04D, 0x3F910D52,
    0x382B7BE, 0xAAECB195, 0x2E440D8E, 0xB3D58B0B, 0x3CA704B8, 0x63293098, 0x714CFD4D, 0x47C8D0F7]
SHL = [1, 4, 6, 6, 1, 2, 3, 3, 6, 3, 2, 5, 6, 2, 5, 4, 5, 6, 3, 4, 2, 3, 4, 2, 3, 3, 2, 2, 4, 6, 4, 2,
       2, 4, 1, 3, 4, 2, 4, 1, 1, 5, 1, 1, 5, 5, 4, 5, 2, 1, 4, 3, 1, 6, 5, 3, 1, 5, 4, 4, 2, 1, 1, 6,
       1, 3, 5, 6, 5, 2, 4, 3, 2, 3, 6, 1, 3, 3, 6, 2, 4, 2, 4, 1, 4, 3, 2, 3, 6, 5, 5, 5, 4, 6, 5, 1,
       2, 3, 6, 5, 6, 5, 4, 2, 6, 2, 5, 1, 6, 1, 4, 6, 6, 3, 2, 6, 2, 6, 2, 3, 5, 1, 1, 6, 4, 2, 4, 3]
SHR = [1, 3, 4, 3, 4, 3, 3, 6, 4, 6, 2, 1, 6, 6, 1, 4, 5, 4, 1, 4, 4, 2, 5, 4, 6, 2, 2, 3, 4, 5, 5, 5,
       4, 5, 1, 6, 4, 2, 3, 6, 5, 6, 6, 1, 2, 2, 4, 5, 2, 4, 6, 6, 3, 6, 2, 1, 1, 5, 3, 5, 3, 2, 6, 4,
       6, 4, 2, 1, 4, 5, 4, 5, 6, 1, 5, 2, 2, 6, 2, 6, 3, 3, 5, 3, 3, 6, 6, 5, 4, 4, 2, 1, 5, 1, 2, 2,
       1, 5, 3, 6, 1, 1, 5, 5, 1, 4, 4, 2, 4, 6, 6, 3, 4, 6, 5, 1, 1, 6, 5, 4, 3, 6, 5, 5, 2, 1, 4, 2]

核心加密处理

1
2
m[0] += ((m[1] << SHL0[i]) + key[0]) ^ (m[1] + sum) ^ ((m[1] >> SHR1[i]) + key[1])
m[1] += ((m[0] << SHL2[i]) + key[2]) ^ (m[0] + sum) ^ ((m[0] >> SHR3[i]) + key[3])

解密

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
def sar(value,shift):
    if value & 0x80000000: # 如果 value 是负数
        return (value >> shift) | (0xFFFFFFFF << (32 - shift))
    else:
        return value >> shift


def enc_tea_ugly(m,k,SHL,SHR,delta):
    m0, m1 = m[0], m[1]
    sum = 0
    for i in range(128):
        sum = (sum + delta[i]) & 0xFFFFFFFF
        m0 = (m0 +(((m1 << SHL[i]) + k[1]) ^ (m1 + sum) ^ (sar(m1,SHR[i]) + k[0]))) & 0xFFFFFFFF
        m1 = (m1 + (((m0 << SHL[i]) + k[3]) ^ (m0 + sum) ^ (sar(m0,SHR[i]) + k[2]))) & 0xFFFFFFFF
    return [m0,m1]

def dec_tea_ugly(m,k,SHL,SHR,delta):
    m0, m1 = m[0], m[1]

    sum = 0
    for i in range(128):
        sum = (sum + delta[i]) & 0xFFFFFFFF

    for i in range(127,-1,-1):
        m1 = (m1 -(((m0 << SHL[i]) + k[3]) ^ (m0 + sum) ^ (sar(m0,SHR[i]) + k[2]))) & 0xFFFFFFFF
        m0 = (m0 -(((m1 << SHL[i]) + k[1]) ^ (m1 + sum) ^ (sar(m1,SHR[i]) + k[0]))) & 0xFFFFFFFF
        sum = (sum -delta[i]) & 0xFFFFFFFF
    return [m0,m1]

def d2b(dword):
    return b''.join(i.to_bytes(4,"little") for i in dword)

m = [0x31313131,0x31313131]
k = [0x55667788,0x11223344,0xCCDDEEFF,0x9900AABB]
SHL = [1, 4, 6, 6, 1, 2, 3, 3, 6, 3, 2, 5, 6, 2, 5, 4, 5, 6, 3, 4, 2, 3, 4, 2, 3, 3, 2, 2, 4, 6, 4, 2,
       2, 4, 1, 3, 4, 2, 4, 1, 1, 5, 1, 1, 5, 5, 4, 5, 2, 1, 4, 3, 1, 6, 5, 3, 1, 5, 4, 4, 2, 1, 1, 6,
       1, 3, 5, 6, 5, 2, 4, 3, 2, 3, 6, 1, 3, 3, 6, 2, 4, 2, 4, 1, 4, 3, 2, 3, 6, 5, 5, 5, 4, 6, 5, 1,
       2, 3, 6, 5, 6, 5, 4, 2, 6, 2, 5, 1, 6, 1, 4, 6, 6, 3, 2, 6, 2, 6, 2, 3, 5, 1, 1, 6, 4, 2, 4, 3]
SHR = [1, 3, 4, 3, 4, 3, 3, 6, 4, 6, 2, 1, 6, 6, 1, 4, 5, 4, 1, 4, 4, 2, 5, 4, 6, 2, 2, 3, 4, 5, 5, 5,
       4, 5, 1, 6, 4, 2, 3, 6, 5, 6, 6, 1, 2, 2, 4, 5, 2, 4, 6, 6, 3, 6, 2, 1, 1, 5, 3, 5, 3, 2, 6, 4,
       6, 4, 2, 1, 4, 5, 4, 5, 6, 1, 5, 2, 2, 6, 2, 6, 3, 3, 5, 3, 3, 6, 6, 5, 4, 4, 2, 1, 5, 1, 2, 2,
       1, 5, 3, 6, 1, 1, 5, 5, 1, 4, 4, 2, 4, 6, 6, 3, 4, 6, 5, 1, 1, 6, 5, 4, 3, 6, 5, 5, 2, 1, 4, 2]
delta = [
    0x3CA6F3E, 0xF2E1C7F1, 0x79A22843, 0xD47FFC9D, 0xDD10F4C, 0x1DC368A1, 0x11B15F8A, 0x9469B3CD,
    0x45D6DB5F, 0xBC6EE006, 0xA76D8146, 0xD542E337, 0x242E1155, 0xAA7F93DD, 0x88625ECB, 0x3738E499,
    0xCEF27BB0, 0x134FF759, 0x358CA57E, 0x3461F310, 0x28540EE7, 0x81C0B176, 0xF725EE9C, 0xAF823A69,
    0x61E8ECB3, 0xF4919548, 0x6AF44E11, 0x866162F3, 0x867F7E65, 0x6B26444C, 0x10216241, 0x9C1BA3CD,
    0x1268FEAD, 0xF462B3B5, 0x5F7DE761, 0x72EAD5B6, 0xFBCE0C75, 0x44EF4142, 0x54DCC3C0, 0xAFFE805D,
    0xC8833729, 0x3C944186, 0x261169A, 0xB547EA2F, 0x9B499585, 0xFE0190BF, 0x1EC74BE7, 0xAFC9292E,
    0xC32F4EEF, 0x420A1A4, 0x94BEAB2B, 0xA0693238, 0x4DD5ADC1, 0x9F658F31, 0x1732EA46, 0x76BEE7DD,
    0x12C63095, 0x9C202C7C, 0xAC9BB4C4, 0x1762AEAF, 0xCA41991E, 0xC0480F85, 0xBF534431, 0xF1C2780E,
    0x990A7D6F, 0x69D22B81, 0x34DDECDE, 0x11ECD8F8, 0x22BB55D2, 0xFFA55B0, 0x6CC1AFBF, 0xA5610F61,
    0x13190C95, 0xE09A5D29, 0xE7514731, 0x9AE21D7A, 0xB8D90F5A, 0x4C7299A9, 0xC4FDB94E, 0xA6475083,
    0xBFB62E5, 0x8F7F77EB, 0xDA2568BB, 0x55C4DA9E, 0xC2932973, 0xCBC60B6D, 0xC46720FD, 0x2046D79D,
    0x629CBD81, 0x932B1F48, 0x72ED29C0, 0xF4B566D3, 0xCBC53B21, 0x7836C87B, 0xBA4357B1, 0xCFD332E2,
    0x4D488FCB, 0xA06DEFBF, 0x68211846, 0xC17F878D, 0x33B10E2C, 0xCFA0E756, 0x4C3C0691, 0x870BE107,
    0x55B3FAF0, 0xFD39F8D7, 0x4B9A7795, 0x188CFA42, 0xAA79A09D, 0x620CF186, 0xEFDE898A, 0x2FA95D43,
    0xD67359DB, 0x8625BC1B, 0x7A1A3BBC, 0xE6ECEF6C, 0xBA27A5C6, 0x559FE417, 0xF01DF04D, 0x3F910D52,
    0x382B7BE, 0xAAECB195, 0x2E440D8E, 0xB3D58B0B, 0x3CA704B8, 0x63293098, 0x714CFD4D, 0x47C8D0F7]

# res = enc_tea_ugly(m, k, SHL, SHR, delta)
# print([hex(x) for x in res])

data =[0x0BD3BE58, 0xBE73BBFB, 0xC8C8AF4E, 0x0B3C7D86, 0xC0257C09,
       0x1D8FE0B0, 0x8837180C, 0xF5CF9D23, 0xB7A8B599, 0xAE630F3D]

flag = []
for i in range(0,len(data),2):
    block =[data[i],data[i+1]]
    dec = dec_tea_ugly(block, k, SHL, SHR, delta)
    flag.extend(dec)  # 用 extend 不是 append

flag_str = d2b(flag)
print(flag_str)
print(flag_str.decode("utf-8", errors="ignore"))

flag 是flag{UG1y_T3A_m@k35_[m3]_fe31_NaU5Eou5!}

babyre

之前写过了，移步[NPC²CTF 2025]babyVM WP

week2

randomXor

分析

ida 反编译的 main 函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
int __fastcall main(int argc, const char **argv, const char **envp)
{
  int i; // [xsp+1Ch] [xbp+1Ch]

  puts("Welcome to house of jjkk");
  __isoc99_scanf("%128s", input);
  if ( strlen(input) == len )
  {
    srand(114514);
    for ( i = 0; i <= 127; ++i )
      input[i] ^= rand();
    if ( !memcmp(input, &cipher, len) )
      puts("Right! ");
    else
      puts("Wrong! ");
    return 0;
  }
  else
  {
    puts("Lenth wrong! ");
    return 0;
  }
}

其中 srand 和 rand 组成了一个类似 MT19937 的伪随机数生成器

1
2
3
4
5
6
7
8
9
10
11
12
__int16 *__fastcall srand(int a1)
{
  __int16 *result; // x0
  unsigned int i; // [xsp+1Ch] [xbp-4h]

  mt[0] = a1;
  for ( i = 1; i <= 0x71; ++i )
    mt[i] = (0xA7A25365 * (mt[i - 1] ^ ((unsigned int)mt[i - 1] >> 30)) + i) ^ 0x56;
  result = &index1;
  index1 = 114;
  return result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
__int64 rand()
{
  int v1; // [xsp+Ch] [xbp-14h]
  unsigned int i; // [xsp+10h] [xbp-10h]
  unsigned int v3; // [xsp+14h] [xbp-Ch]
  unsigned int v4; // [xsp+1Ch] [xbp-4h]
  unsigned int v5; // [xsp+1Ch] [xbp-4h]

  v1 = (unsigned __int16)index1;
  if ( (unsigned __int16)index1 > 0x71u )
  {
    for ( i = 0; i <= 0x71; ++i )
    {
      v3 = (mt[i] & 0x80000 | mt[(i + 1) % 0x72] & 0x7FFFFu) >> 1;
      if ( (mt[(i + 1) % 0x72] & 1) != 0 )
        v3 ^= 0x8908B0DF;
      mt[i] = mt[(i + 514) % 0x72] ^ v3;
    }
    index1 = 0;
    v1 = 0;
  }
  v4 = mt[v1];
  index1 = v1 + 1;
  v5 = v4 ^ (v4 >> 11) ^ ((v4 ^ (v4 >> 11)) << 7) & 0x9D2C5680;
  return v5 ^ (v5 << 15) & 0xEFC60000 ^ ((v5 ^ (v5 << 15) & 0xEFC60000) >> 18);
}

& cipher 处提取出密文(128 字节)

1
2
3
4
5
6
7
8
9
10
11
12
13
0xCD, 0xC7, 0xE2, 0x86, 0x3A, 0x19, 0xB9, 0xB6, 0xF1, 0x81,
0x45, 0xB4, 0xB6, 0xE5, 0x0D, 0xD4, 0xB4, 0xA6, 0xD3, 0xF7,
0x33, 0x5D, 0x5F, 0x09, 0x95, 0xAF, 0x9A, 0xBE, 0x89, 0xEA,
0x54, 0x71, 0x68, 0xC6, 0x8B, 0x84, 0x05, 0x14, 0xBB, 0x41,
0xDD, 0x34, 0x91, 0x1B, 0x21, 0x83, 0xDE, 0x15, 0x52, 0x22,
0x8A, 0xE1, 0xBD, 0x33, 0x4D, 0x7E, 0xD2, 0xA3, 0xA9, 0x12,
0xF1, 0xE9, 0x88, 0x60, 0x24, 0xE6, 0xAB, 0x54, 0xCF, 0x02,
0x1B, 0x6B, 0x6B, 0xBA, 0x26, 0x09, 0xFB, 0x10, 0x97, 0xDF,
0x17, 0xBF, 0xCC, 0xE7, 0xB0, 0x42, 0xE5, 0x32, 0x4C, 0x0F,
0xE0, 0x60, 0x47, 0xD0, 0x5A, 0xE8, 0x48, 0xAE, 0x74, 0x4D,
0x98, 0x7A, 0xB3, 0xD2, 0xDE, 0x1B, 0x96, 0x91, 0x7A, 0x03,
0x67, 0xCF, 0xF0, 0x31, 0x32, 0x49, 0x9A, 0xE0, 0xC2, 0x3B,
0x51, 0x63, 0xFF, 0x84, 0x60, 0x5B, 0xC1, 0x8E

解密

伪随机算法已经反编译得很清楚了，稍作修改就可以了，要注意加密 input[i] ^= rand()是对单字节操作,所以获得 rand() 值时要取低八位

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
cipher = [
    0xCD, 0xC7, 0xE2, 0x86, 0x3A, 0x19, 0xB9, 0xB6, 0xF1, 0x81,
    0x45, 0xB4, 0xB6, 0xE5, 0x0D, 0xD4, 0xB4, 0xA6, 0xD3, 0xF7,
    0x33, 0x5D, 0x5F, 0x09, 0x95, 0xAF, 0x9A, 0xBE, 0x89, 0xEA,
    0x54, 0x71, 0x68, 0xC6, 0x8B, 0x84, 0x05, 0x14, 0xBB, 0x41,
    0xDD, 0x34, 0x91, 0x1B, 0x21, 0x83, 0xDE, 0x15, 0x52, 0x22,
    0x8A, 0xE1, 0xBD, 0x33, 0x4D, 0x7E, 0xD2, 0xA3, 0xA9, 0x12,
    0xF1, 0xE9, 0x88, 0x60, 0x24, 0xE6, 0xAB, 0x54, 0xCF, 0x02,
    0x1B, 0x6B, 0x6B, 0xBA, 0x26, 0x09, 0xFB, 0x10, 0x97, 0xDF,
    0x17, 0xBF, 0xCC, 0xE7, 0xB0, 0x42, 0xE5, 0x32, 0x4C, 0x0F,
    0xE0, 0x60, 0x47, 0xD0, 0x5A, 0xE8, 0x48, 0xAE, 0x74, 0x4D,
    0x98, 0x7A, 0xB3, 0xD2, 0xDE, 0x1B, 0x96, 0x91, 0x7A, 0x03,
    0x67, 0xCF, 0xF0, 0x31, 0x32, 0x49, 0x9A, 0xE0, 0xC2, 0x3B,
    0x51, 0x63, 0xFF, 0x84, 0x60, 0x5B, 0xC1, 0x8E
]

mt = [0] * 0x72 # 114
# 状态数组
index1 = 114
# 当前随机数生成的位置索引

def srand(a): # 初始化伪随机数生成器
    global mt, index1
    mt[0] = a
    for i in range(1,0x72):
        mt[i] = (0xA7A25365 * (mt[i - 1] ^ (mt[i - 1] >> 30)) + i) ^ 0x56
        mt[i] &= 0xFFFFFFFF
    index1 = 114

def rand(): # 生成伪随机数
    global mt,index1
    v1 = index1
    if index1 > 0x71:
        for i in range(0x72):
            v3 = (mt[i] & 0x80000 | mt[(i + 1) % 0x72] & 0x7FFFF) >> 1
            if mt[(i + 1) % 0x72] & 1:
                v3 ^= 0x8908B0DF
            mt[i] = mt[(i + 514) % 0x72] ^ v3
        index1 = 0
        v1 = 0
    v4 = mt[v1]
    index1 = v1 + 1
    v5 = v4 ^ (v4 >> 11) ^ ((v4 ^ (v4 >> 11)) << 7) & 0x9D2C5680
    v5 = v5 ^ (v5 << 15) & 0xEFC60000 ^ ((v5 ^ ((v5 << 15) & 0xEFC60000)) >> 18)
    return v5 & 0xFFFFFFFF

def dec(cipher):
    srand(114514)
    flag_bytes = []
    for i in cipher:
        r = rand() & 0xFF # 取低八位
        flag_bytes.append(i ^ r)
    return bytes(flag_bytes)

flag = dec(cipher)
print(flag.decode())

flag 为 flag{R4ndom_rand0m_happy_Funnny_R4ndom_1s_r3ally_funNy!!_hhh233HHH_this_1s_just_a_pi3ce_of_sh1t_fffkkkkkk_f4ck_jjjjKKKKKjjjjasd}

simple

java 层

主要逻辑在 com.example.simpleandroid.CheckActivity

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
public class CheckActivity extends AppCompatActivity {
    private ActivityCheckBinding binding;

    public native boolean CheckData(String str);

    static {
        System.loadLibrary("check");
    }

    public static synchronized void init() {
        synchronized (CheckActivity.class) {
            ShadowHook.init();
        }
    }

    @Override // androidx.fragment.app.FragmentActivity, androidx.activity.ComponentActivity, androidx.core.app.ComponentActivity, android.app.Activity
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        init();
        this.binding = ActivityCheckBinding.inflate(getLayoutInflater());
        setContentView(this.binding.getRoot());
        Button button = this.binding.check2;
        button.setOnClickListener(new View.OnClickListener() { // from class: com.example.simpleandroid.CheckActivity.1
            @Override // android.view.View.OnClickListener
            public void onClick(View v) {
                EditText editText = CheckActivity.this.binding.inputFlag2;
                editText.setFilters(new InputFilter[]{new InputFilter.LengthFilter(30)});
                String input = editText.getText().toString();
                if (CheckActivity.this.isValidInput(input) && CheckActivity.this.CheckData(input)) {
                    Toast.makeText(CheckActivity.this, "You are right", 0).show();
                } else {
                    Toast.makeText(CheckActivity.this, "You are wrong", 0).show();
                }
            }
        });
    }

    /* JADX INFO: Access modifiers changed from: private */
    public boolean isValidInput(String input) {
        return input.startsWith("flag{") && input.endsWith("}") && input.length() == 32;
    }
}

声明了一个 native 方法 CheckData，在本地库 libcheck.so 里
读取字符串输入之后，先调用 isValidInput(input) 做格式检查，再调用 native 方法 CheckData(input) 做进一步校验

native 层

先找到 CheckData

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
__int64 __fastcall Java_com_example_simpleandroid_CheckActivity_CheckData(__int64 a1, __int64 a2, __int64 a3)
{
  _BYTE *v3; // x9
  char v4; // w8
  int i; // [xsp+4h] [xbp-2Ch]
  __int64 StringUTFChars; // [xsp+8h] [xbp-28h]

  StringUTFChars = _JNIEnv::GetStringUTFChars();
  for ( i = 0; i < 32; ++i )
  {
    v3 = (_BYTE *)(StringUTFChars + i);
    v4 = *v3 ^ (ee[i] != 0x7F);
    *v3 = v4;
    if ( v4 )
    {
      ((void (__fastcall *)(__int64, __int64, __int64))_JNIEnv::ReleaseStringUTFChars)(a1, a3, StringUTFChars);
      return 0;
    }
  }
  ((void (__fastcall *)(__int64, __int64, __int64))_JNIEnv::ReleaseStringUTFChars)(a1, a3, StringUTFChars);
  return 1;
}

'''
ee = [
  0x19, 0x13, 0x1E, 0x18, 0x04, 0x2B, 0x17, 0x16, 0x0C, 0x20,
  0x12, 0x1E, 0x06, 0x20, 0x1D, 0x1A, 0x20, 0x1E, 0x20, 0x0C,
  0x16, 0x12, 0x0F, 0x13, 0x1A, 0x20, 0x19, 0x13, 0x1E, 0x18,
  0x5E, 0x02]
'''

可以看出 ee 数组中的每一个元素都不等于 0x7F,说明 ee[i] != 0x7F 的结果恒等于 1，所以只有当传入的字符串前 32 个字符是 32 个连续的 \x01 时，这个函数才会返回 1，否则返回 0

在 JNI_Onload 里面看到函数 sub_1C430

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
__int64 __fastcall sub_1C430(__int64 a1, __int64 a2, __int64 a3)
{
  unsigned __int64 i; // [xsp+18h] [xbp-58h]
  __int64 StringUTFChars; // [xsp+20h] [xbp-50h]
  unsigned __int8 v8; // [xsp+44h] [xbp-2Ch]
  _QWORD v9[5]; // [xsp+48h] [xbp-28h] BYREF

  v9[4] = *(_QWORD *)(_ReadStatusReg(ARM64_SYSREG(3, 3, 13, 0, 2)) + 40);
  sub_1C010();
  StringUTFChars = _JNIEnv::GetStringUTFChars();
  sub_1C078(v9, StringUTFChars, kk);
  eee[0] = 0xCD8413F20B6FCE4CLL;
  qword_49828 = 0x5C9B1B43933043CFLL;
  qword_49830 = 0x1C6EB6E1A546128ELL;
  qword_49838 = 0x77C6E3D7AE009A3ELL;
  for ( i = 0LL; i <= 3; ++i )
  {
    if ( v9[i] != eee[i] )
    {
      _JNIEnv::ReleaseStringUTFChars(a1, a3, StringUTFChars);
      v8 = 0;
      goto LABEL_7;
    }
  }
  _JNIEnv::ReleaseStringUTFChars(a1, a3, StringUTFChars);
  v8 = 1;
LABEL_7:
  _ReadStatusReg(ARM64_SYSREG(3, 3, 13, 0, 2));
  return v8;
}

sub_1C010

1
2
3
4
5
6
7
8
__int64 sub_1C010()
{
  __int64 result; // x0

  result = shadowhook_hook_sym_addr(sub_11073, sub_21345, 0LL);
  stub = result;
  return result;
}

sub_11073

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
void __fastcall sub_11073(const char *a1)
{
  int v1; // w9
  int k; // [xsp+24h] [xbp-13Ch]
  int v3; // [xsp+28h] [xbp-138h]
  int j; // [xsp+2Ch] [xbp-134h]
  unsigned int v5; // [xsp+30h] [xbp-130h]
  unsigned int i; // [xsp+34h] [xbp-12Ch]
  _OWORD v8[16]; // [xsp+50h] [xbp-110h] BYREF
  __int64 v9; // [xsp+158h] [xbp-8h]

  v9 = *(_QWORD *)(_ReadStatusReg(ARM64_SYSREG(3, 3, 13, 0, 2)) + 40);
  for ( i = 0; i <= 0xFF; ++i )
    ss[i] = i;
  v5 = __strlen_chk(a1, 0xFFFFFFFFFFFFFFFFLL);
  srand(0x217u);
  memset(v8, 0, sizeof(v8));
  for ( j = 0; j <= 255; ++j )
    *((_BYTE *)v8 + j) = a1[j % v5];
  v3 = 0;
  for ( k = 0; k <= 255; ++k )
  {
    v1 = (unsigned __int8)(v3 + ss[k] + *((_BYTE *)v8 + k));
    if ( v3 + ss[k] + *((unsigned __int8 *)v8 + k) <= 0 )
      v1 = -(unsigned __int8)-(char)(v3 + ss[k] + *((_BYTE *)v8 + k));
    v3 = v1;
    sub_1BC30((char *)&ss[k], (char *)&ss[v1]);
  }
  _ReadStatusReg(ARM64_SYSREG(3, 3, 13, 0, 2));
}

char *__fastcall sub_1BC30(char *result, char *a2)
{
  char v2; // [xsp+Fh] [xbp-11h]

  v2 = *result;
  *result = *a2;
  *a2 = v2;
  return result;
}

sub_11073 主要实现了 RC4 里面的 KSA
等效 python 写法如下:

1
2
3
4
5
6
7
8
def KSA(key:bytes) -> list:
    S = list(range(256))
    key_len = len(key)
    j = 0
    for i in range(256):
        j = (j + S[i] + key[i % key_len]) % 256
        S[i], S[j] = S[j], S[i]
    return S

这里面还有个 srand(0x217) 先放一边

sub_21345

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
void __fastcall sub_21345(unsigned __int8 *a1)
{
  void *v1; // x30
  void (__fastcall *prev_func)(_BYTE *); // [xsp+8h] [xbp-58h]
  int i; // [xsp+24h] [xbp-3Ch]
  _BYTE v4[8]; // [xsp+30h] [xbp-30h] BYREF
  _BYTE v5[13]; // [xsp+38h] [xbp-28h]
  _BYTE v6[16]; // [xsp+48h] [xbp-18h] BYREF
  __int64 v7; // [xsp+58h] [xbp-8h]

  v7 = *(_QWORD *)(_ReadStatusReg(ARM64_SYSREG(3, 3, 13, 0, 2)) + 40);
  ShadowhookStackScope::ShadowhookStackScope((ShadowhookStackScope *)v4, v1);
  *(_QWORD *)&v5[5] = 0x3C37311A241A312CLL; //这是把 8 字节写入 v5[5]~v5[12]
  *(_QWORD *)v5 = 0x1A312C1A20332C02LL;  // 这是把 8 字节写入 v5[0]~v5[7]
  for ( i = 0; i <= 12; ++i )
    v6[i] = v5[i] ^ 0x45;
  prev_func = (void (__fastcall *)(_BYTE *))shadowhook_get_prev_func(sub_11073);
  prev_func(v6);
  srand(0x159357u);
  ShadowhookStackScope::~ShadowhookStackScope((ShadowhookStackScope *)v4);
  _ReadStatusReg(ARM64_SYSREG(3, 3, 13, 0, 2));
}

对 v5 数组中的前 13 个数据进行异或 0x45 得到 v6 数组 ，然后 hook 了函数 sub_11073,把 v6 作为参数传入，srand(0x159357)设置了一个随机数种子

计算出 v6

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
v5 = [0] * 13

# 写入 v5[5]~v5[12] (小端序)
val1 = 0x3C37311A241A312C
v5_bytes_5_12 = [(val1 >> (8*i)) & 0xFF for i in range(8)]
v5[5:13] = v5_bytes_5_12

# 写入 v5[0]~v5[7] (小端序) 注意有覆盖
val2 = 0x1A312C1A20332C02
v5_bytes_0_7 = [(val2 >> (8*i)) & 0xFF for i in range(8)]
v5[0:8] = v5_bytes_0_7


v6 = ''.join(chr(v5[i] ^ 0x45) for i in range(13))
print(v6)

# Give_it_a_try

整理出加密

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
import random
key = "this_is_a_key"
cipher = [
  0x19, 0x13, 0x1E, 0x18, 0x04, 0x2B, 0x17, 0x16, 0x0C, 0x20,
  0x12, 0x1E, 0x06, 0x20, 0x1D, 0x1A, 0x20, 0x1E, 0x20, 0x0C,
  0x16, 0x12, 0x0F, 0x13, 0x1A, 0x20, 0x19, 0x13, 0x1E, 0x18,
  0x5E, 0x02]

def KSA(key:bytes) -> list:
    S = list(range(256))
    key_len = len(key)
    j = 0
    for i in range(256):
        j = (j + S[i] + key[i % key_len]) % 256
        S[i], S[j] = S[j], S[i]
    return S

def PRGA_custom(S:list, data:bytes, seed = 0x159357)
    random.seed(seed)

    i = 0
    j = 0
    output = bytearray(data)
    tmp_qword = 0
    qwords = []

    for idx in range(len(output)):
        i = (i + 1) % 256
        j = (j + S[i]) % 256
        S[i], S[j] = S[j], S[i]
        K = S[(S[i] + S[j]) % 256]
        output[idx] ^= K

        tmp_qword = (tmp_qword >> 8) | output[idx]

        if (idx + 1) % 8 == 0:
            if random.randint(0, 1):
                shift = random.randint(0, 63)
                tmp_qword ^= tmp_qword >> shift
            else:
                shift = random.randint(0, 63)
                tmp_qword ^= (tmp_qword << shift) & 0xFFFFFFFFFFFFFFFF

            qwords.append(tmp_qword)
            tmp_qword = 0 # 重置

        # 不足八字节的剩余部分
        if tmp_qword != 0:
            qwords.append(tmp_qword)

    return bytes(output), qwords
CTF
#Reverse
NPC²CTF 2025 Reverse 方向复现
http://example.com/2025/08/26/NPCCTF2025/
作者
Eleven
发布于
2025年8月26日
许可协议
