Flutter 逆向

[NewStar 2024 Week5] Ohn_flutter!!!

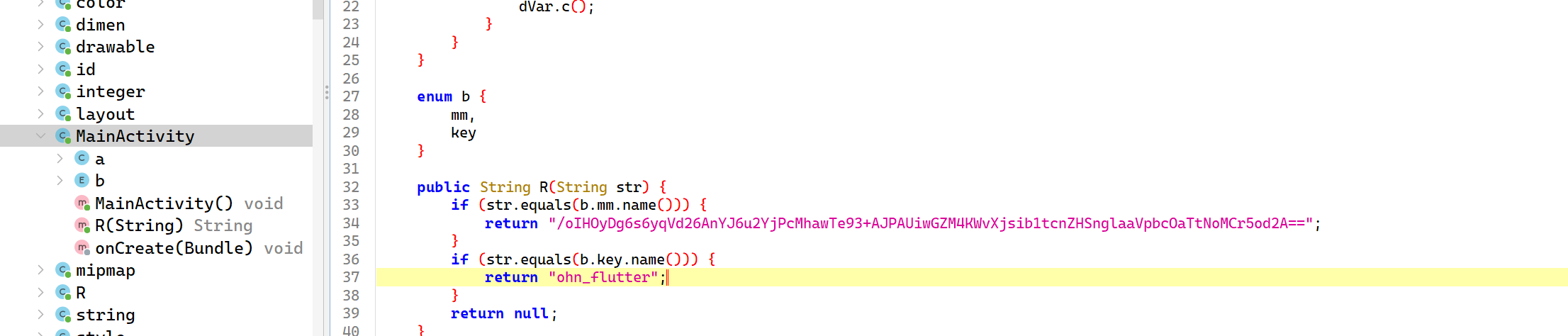

java 层看到密文

使用 blutter 恢复 libapp.so 的符号
先克隆 blutter 项目

git clone https://github.com/worawit/blutter --depth=1

D:\aaa\flutter\blutter>python -m pip install pyelftools
D:\aaa\flutter\blutter>python blutter.py ..\ns24\ .\output

ns24 目录中存放着已经提取出来的 so 文件，在 blutter 目录下找到刚刚新生成的 output 文件夹
找到里面的 ida_script\addNames.py,在 ida 8.3 中(ida 9.0 的 api 改变了，使用这个脚本会有报错，不能完全恢复)用这个脚本恢复 so 文件的符号，由于我 8.3 的 ida 没法反编译 arm，所以把把这个保存成 i64，然后选择 bn 中的 Analysis -> Import Debug Info from External File 导入 i64 文件，即可在 bn 中看到还原了函数名的 so 文件

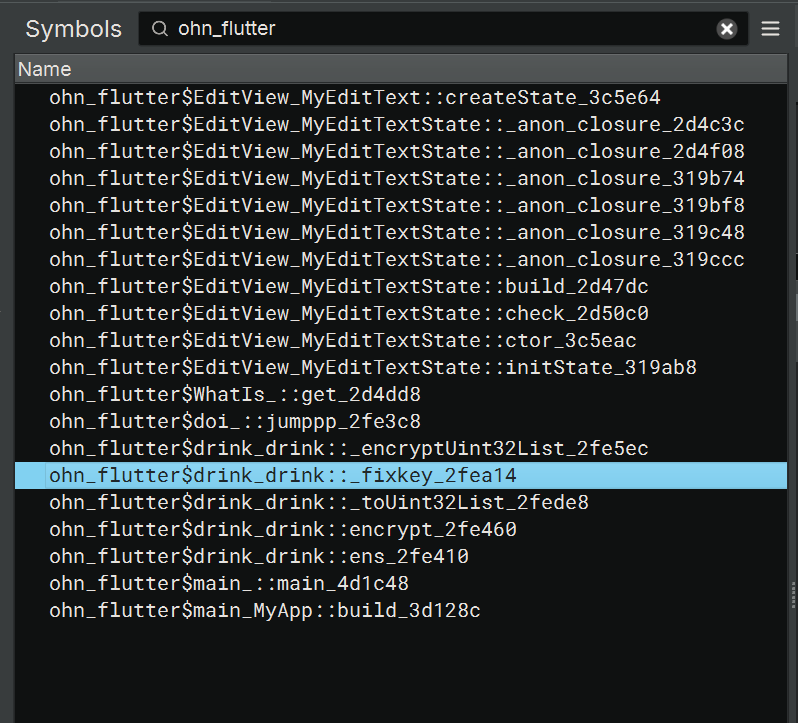

搜索 ohn_flutter 查找关键函数

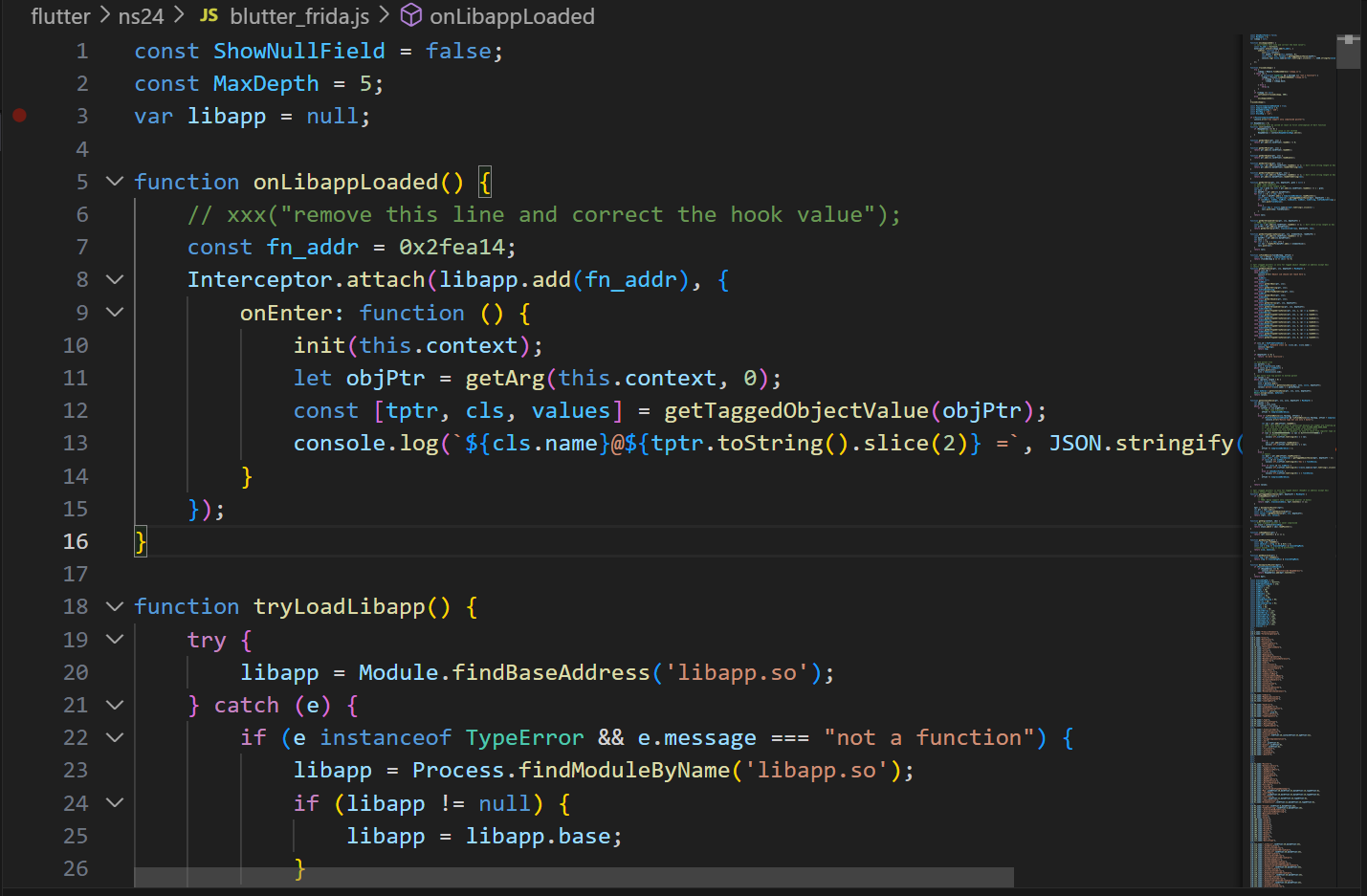

用 blutter 里面的 blutter_frida.js 脚本 hook 函数的参数

ohn_flutter$drink_drink::_fixkey_2fea14

得到 key 111,104,110,95,102,108,117,116,116,101,114,107,107,107,107,107

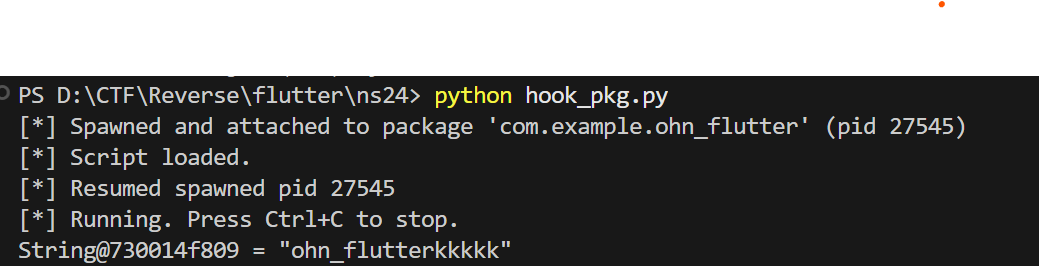

hook ohn_flutter$doi_::jumppp_2fe3c8的参数也能得到 key 为 ohn_flutterkkkkk

点进 ohn_flutter$doi_::jumppp_2fe3c8 -> ohn_flutter$drink_drink::ens_2fe410 -> ohn_flutter$drink_drink::encrypt_2fe460

里面有不少有用的函数如最开始 hook 过的 ohn_flutter$drink_drink::_fixkey_2fea14

hook ohn_flutter$drink_drink::_encryptUint32List_2fe5ec

_Uint32List@730017de19 = [
  1601071215,
  1953852518,
  1802659188,
  1802201963
]

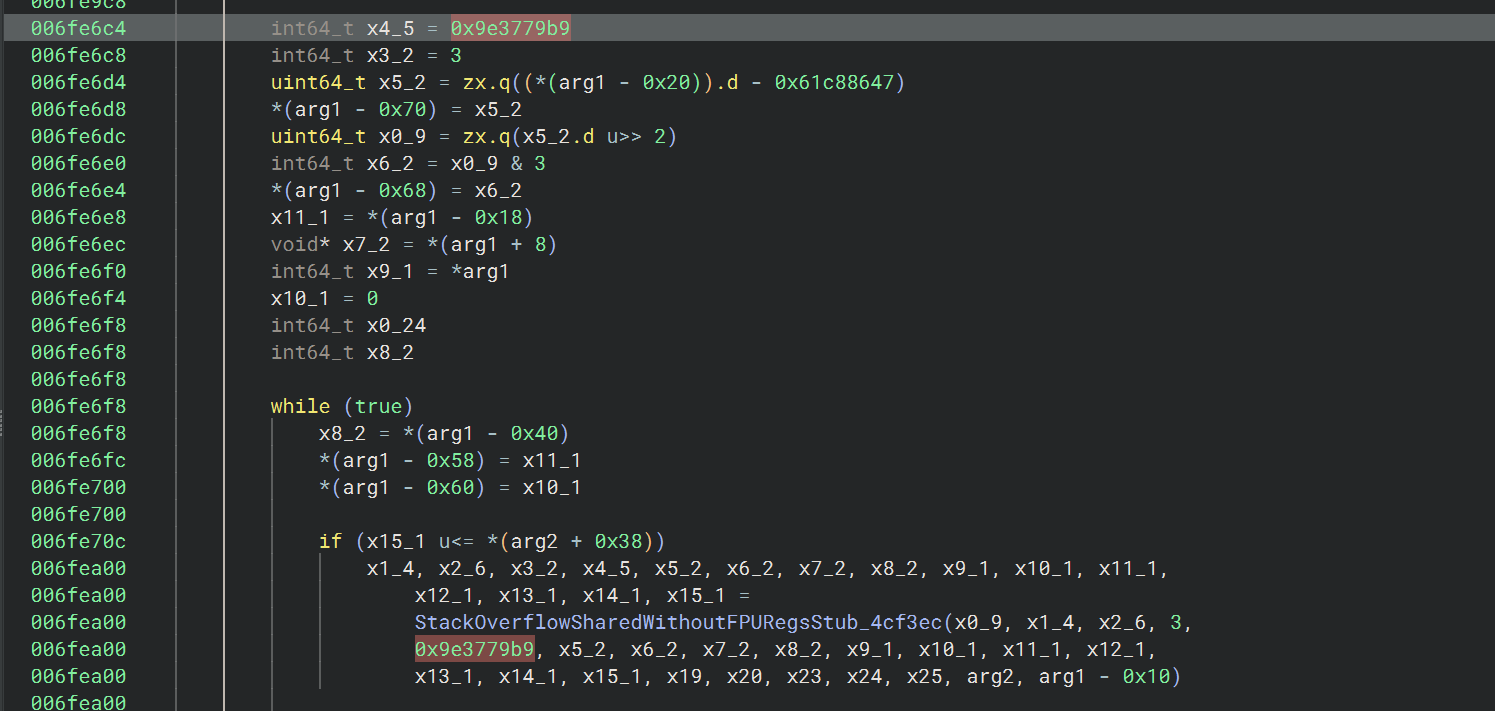

仔细看这个函数，发现了很多 xxtea 的特征
DELTA = 0x9E3779B9

rounds = 6 + 52 / n

函数的开头可以看到定义 x2 = 0x34(52)

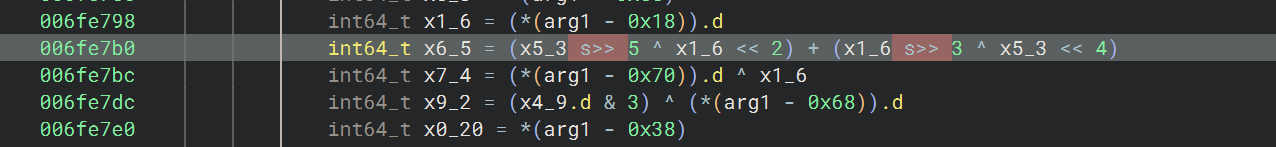

MX = ((z >> 5 ^ y << 2) + (y >> 3 ^ z << 4)) ^ ((sum ^ y) + (key[(p & 3) ^ e] ^ z))

然后往前交叉引用
hook dart_convert_Codec::encode_2d5178

_Uint8List@7300131939 = [0,44,116,172,168,123,57,249]
_Uint8List@730013b8e9 = [115,125,141,220,54,187,239,62,180,24,73,101,254,58,44,214]

点进这个函数，看到有个 base64 dart_convert_Base64Encoder::convert_409c50

到这里这条线的函数差不多就看完了
再回到开始的地方

ohn_flutter$EditView_MyEditTextState::_anon_closure_2d4f08 -> encrypt$encrypt_Encrypted::ctor_fromUtf8_2fe1c4 -> dart_convert_Utf8Encoder::convert_40b1a8

hook dart_convert_Utf8Encoder::convert_40b1a8

String@730078e5b9 = "{\"method\":\"TextInput.setClient\",\"args\":[1,{\"inputType\":{\"name\":\"TextInputType.text\",\"signed\":null,\"decimal\":null},\"readOnly\":false,\"obscureText\":false,\"autocorrect\":true,\"smartDashesType\":\"1\",\"smartQuotesType\":\"1\",\"enableSuggestions\":true,\"enableInteractiveSelection\":true,\"actionLabel\":null,\"inputAction\":\"TextInputAction.done\",\"textCapitalization\":\"TextCapitalization.none\",\"keyboardAppearance\":\"Brightness.light\",\"enableIMEPersonalizedLearning\":true,\"contentCommitMimeTypes\":[],\"autofill\":{\"uniqueIdentifier\":\"EditableText-28050040\",\"hints\":[],\"editingValue\":{\"text\":\"\",\"selectionBase\":0,\"selectionExtent\":0,\"selectionAffinity\":\"TextAffinity.downstream\",\"selectionIsDirectional\":false,\"composingBase\":-1,\"composingExtent\":-1},\"hintText\":\"Fill flag here and Press enter...\"},\"enableDeltaModel\":false}]}"
String@7300790499 = "{\"method\":\"TextInput.setEditableSizeAndTransform\",\"args\":{\"width\":372.72727272727275,\"height\":24.0,\"transform\":[1.0,0.0,0.0,0.0,0.0,1.0,0.0,0.0,0.0,0.0,1.0,0.0,10.0,105.63636363636364,0.0,1.0]}}"
String@7300791709 = "{\"method\":\"TextInput.setMarkedTextRect\",\"args\":{\"width\":2.0,\"height\":24.0,\"x\":0.18181818181818166,\"y\":0.18181818181818699}}"
String@7300792309 = "{\"method\":\"TextInput.setStyle\",\"args\":{\"fontFamily\":\"Roboto\",\"fontSize\":16.0,\"fontWeightIndex\":3,\"textAlignIndex\":4,\"textDirectionIndex\":1}}"
String@7300792f59 = "{\"method\":\"TextInput.setEditingState\",\"args\":{\"text\":\"\",\"selectionBase\":0,\"selectionExtent\":0,\"selectionAffinity\":\"TextAffinity.downstream\",\"selectionIsDirectional\":false,\"composingBase\":-1,\"composingExtent\":-1}}"
String@73007939c9 = "{\"method\":\"TextInput.show\",\"args\":null}"
String@73007942a9 = "{\"method\":\"TextInput.requestAutofill\",\"args\":null}"
String@73007a9c69 = "{\"method\":\"TextInput.setCaretRect\",\"args\":{\"width\":2.0,\"height\":24.0,\"x\":0.18181818181818166,\"y\":0.18181818181818699}}"
String@73007f7c19 = "{\"method\":\"TextInput.show\",\"args\":null}"
String@73007f8fd9 = "[null]"
String@73001063e9 = "{\"method\":\"TextInput.setCaretRect\",\"args\":{\"width\":2.0,\"height\":24.0,\"x\":36.909090909090914,\"y\":0.18181818181818699}}"
String@7300110ab9 = "{\"method\":\"TextInput.clearClient\",\"args\":null}"
String@7300111619 = "[null]"
String@7300111b89 = "{\"method\":\"TextInput.hide\",\"args\":null}"
String@73007f70a9 = "aaaa"
String@73001124c9 = "ohn_flutterkkkkk"
String@73000fd5d1 = "12345678901234561234567890123456"
String@7300113d99 = "1234567890123456"
String@7300113c49 = "mpxRIDtEnuE="

发现一个 AES

ohn_flutter$EditView_MyEditTextState::_anon_closure_2d4f08 -> encrypt$encrypt_AES::ctor_2d5474

hook encrypt$encrypt_AES::ctor_2d5474

Key@73001121a9 = {
  "parent!Encrypted": {
    "off_8!_Uint8List@7300112299": [49, 50, 51, 52, 53, 54, 55, 56, 57, 48, 49, 50, 51, 52, 53, 54, 49, 50, 51, 52, 53, 54, 55, 56, 57, 48, 49, 50, 51, 52, 53, 54]
  }
}

ohn_flutter$EditView_MyEditTextState::_anon_closure_2d4f08 -> encrypt$encrypt_Encrypter::encrypt_2d51f0

hook encrypt$encrypt_Encrypter::encrypt_2d51f0

IV@73001146b9 = {
  "parent!Encrypted": {
    "off_8!_Uint8List@7300114769": [
      49,50,51,52,53,54,55,56,57,48,49,50,51,52,53,54
    ]
  }
}

hook ohn_flutter$EditView_MyEditTextState::check_2d50c0

String@730011edd9 = "c32N3Da77z60GEll/jos1g=="

exp:

import base64
from Crypto.Cipher import AES

def d2b(dword):
    return b''.join(i.to_bytes(4,'little') for i in dword)

def b2d(byte_array):
    return [int.from_bytes(byte_array[i:i+4], 'little',signed=False) for i in range(0,len(byte_array),4)]

def xxtea_enc(v,key):
    n = len(v)
    if n < 1:
        return v

    delta = 0x9E3779B9
    rounds = 6 + 52 // n
    sum = 0
    z = v[n - 1]

    for _ in range(rounds):
        sum = (sum + delta) & 0xFFFFFFFF
        e = (sum >> 2) & 3

        for p in range(n):
            y = v[(p + 1) % n]
            v[p] = (v[p] + (((z >> 5 ^ y << 2) + (y >> 3 ^ z << 4)) ^ ((sum ^ y) + (key[(p & 3) ^ e] ^ z)))) & 0xFFFFFFFF
            z = v[p]
    return v

def xxtea_dec(v,key):
    n = len(v)
    if n < 1 :
        return v

    delta = 0x9E3779B9
    rounds = 6 + 52 // n
    sum = (rounds * delta) & 0xFFFFFFFF
    y = v[0]

    for _ in range(rounds):
        e = (sum >> 2) & 3

        for p in range(n - 1, -1, -1):
            z = v[p-1] if p > 0 else v[n-1]
            v[p] = (v[p] - (((z >> 5 ^ y << 2) + (y >> 3 ^ z << 4)) ^ ((sum ^ y) + (key[(p & 3) ^ e] ^ z)))) & 0xFFFFFFFF
            y = v[p]
        sum = (sum - delta) & 0xFFFFFFFF

    return v

def  pkcs7_unpad(data):
    return data[:-data[-1]]

if __name__ == "__main__":
    cipher = b"/oIHOyDg6s6yqVd26AnYJ6u2YjPcMhawTe93+AJPAUiwGZM4KWvXjsib1tcnZHSnglaaVpbcOaTtNoMCr5od2A=="
    data = base64.b64decode(cipher)

    # if len(data) % 4 != 0:
    #         padding = 4 - (len(data) % 4)
    #         data += b'\x00' * padding

    aes_key = b"12345678901234561234567890123456"
    aes_iv = b"1234567890123456"

    aes = AES.new(aes_key,AES.MODE_CBC,aes_iv)
    aes_plain = pkcs7_unpad(aes.decrypt(data))
    print(f"aes_plain: {aes_plain}")


    xxtea_key = "ohn_flutterkkkkk"
    xxtea_cipher = base64.b64decode(aes_plain)
    print(f"xxtea_cipher: {xxtea_cipher}")
    v = b2d(xxtea_cipher)
    key = b2d(xxtea_key.encode())

    dec = xxtea_dec(v,key)
    result = d2b(dec)

    print(f"decrypt: {(result)}")

flag 为 flag{U_@r4_F1u774r_r4_m@ster}

[WMCTF 2025] Want2BecomeMagicalGirl

参考学习的博客是 Pangbai 师傅的:https://pangbai.work/CTF/Reverse/Want2BecomeMagicalGirl/

上次在 windows 上构建的 blutter 似了，这次用 linux 构建
blutter 项目地址 ：https://github.com/worawit/blutter

git clone https://github.com/worawit/blutter --depth=1
cd blutter
sudo apt install python3-pyelftools python3-requests git cmake ninja-build \
    build-essential pkg-config libicu-dev libcapstone-dev

python3 blutter.py path/to/app/lib/arm64-v8a out_dir

使用 blutter 生成的 out_dir 目录下的 ida_script/addNames.py 脚本在 ida 中恢复符号

关注 asm 文件,用 ai 分析 magical_girl 里面的 dart 文件,把它还原为可读的代码

我的还原结果如下:
aes_crypt_null_safe.dart

// Placeholder shim to match calls from EditView.dart.
// If you want to run this outside the decompiled runtime, replace with a real AES implementation
// and keep the same method signatures.

import 'dart:typed_data';

class AesCrypt {
  late Uint8List _key;
  late Uint8List _iv;

  void aesSetKeys(Uint8List key, Uint8List iv) {
    _key = Uint8List.fromList(key);
    _iv = Uint8List.fromList(iv);
  }

  void aesSetMode() {
    // no-op in the shim. In original app, likely sets CBC/ECB.
  }

  Uint8List aesEncrypt(Uint8List plain) {
    // This shim does NOT do real crypto. It only echoes input for readability/testing.
    // Replace with real AES to match the app.
    return Uint8List.fromList(plain);
  }
}

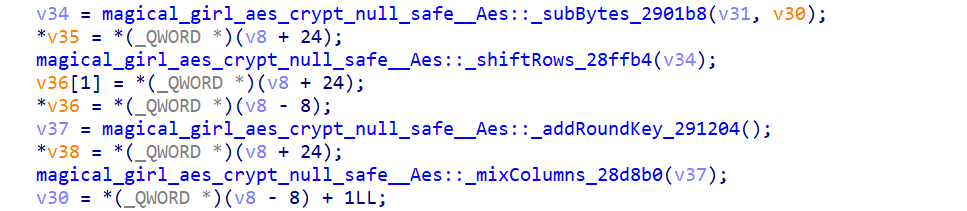

在原始的 dart 代码中搜索 aesSetKeys 和 aesSetMode, 找到函数地址并进行 hook 操作
使用 blutter 生成的 frida 脚本 blutter_frida.js

注意脚本里的这部分内容

function onLibappLoaded() {
    // xxx("remove this line and correct the hook value");
    const fn_addr = 0x2915f4;

    Interceptor.attach(libapp.add(fn_addr), {
        onEnter: function () {
            init(this.context);
            let objPtr = getArg(this.context, 0);
            const [tptr, cls, values] = getTaggedObjectValue(objPtr);
            console.log(`${cls.name}@${tptr.toString().slice(2)} =`, JSON.stringify(values, null, 2));
        }
    });
}

其中的 let objPtr = getArg(this.context, 0); 的第二个参数 0 表示要被打印的参数索引

hook aesSetKeys 的第一个参数 key 和第二个参数 iv

[*] Spawned and attached to package 'work.pangbai.magic.magical_girl' (pid 19508)
[*] Script loaded.
[*] Resumed spawned pid 19508
[*] Running. Press Ctrl+C to stop.
setEnabled called with argument: false
Forcing button to be enabled.
_Uint8List@77006ddf29 = [
  1,
  2,
  3,
  4,
  5,
  6,
  7,
  8,
  9,
  10,
  11,
  12,
  13,
  14,
  15,
  16
]

[*] Spawned and attached to package 'work.pangbai.magic.magical_girl' (pid 20635)
[*] Script loaded.
[*] Resumed spawned pid 20635
[*] Running. Press Ctrl+C to stop.
setEnabled called with argument: false
Forcing button to be enabled.
_Uint8List@770071f7f9 = [
  122,
  37,
  197,
  36,
  198,
  51,
  76,
  48,
  243,
  98,
  175,
  172,
  63,
  35,
  3,
  213
]

EditView.dart

import 'dart:convert';
import 'dart:typed_data';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
import 'package:native_add/native_add.dart' show getKey, getSym; // 来自反汇编
import 'aes_crypt_null_safe.dart' show AesCrypt;                 // 使用项目内 AES 实现
import 'null_sub0.dart' as bridge;                               // MethodChannel 发送

class MyEditText extends StatefulWidget {
  const MyEditText({super.key});
  @override
  State<MyEditText> createState() => MyEditTextState();
}

class MyEditTextState extends State<MyEditText> {
  final _controller = TextEditingController();
  String _result = "";

  // 反汇编里展示的大段文本
  static const _lyrics = "魔法で最低な人を消そう\nLet's use magic to erase the worst people\n用魔法将恶人全部抹消\n\n"
      "はぁ正直もうやめたい（はぁ）\nSigh... Honestly I want to quit sigh\n唉 说真的已经累了（唉）\n\n"
      "魔法少女をやめたい（はぁ）\nI want to stop being a magical girl sigh\n不想再当魔法少女了（唉）\n\n"
      "自分ごと消えちゃってさようなら\nMaybe I should disappear myself - goodbye\n连同自己也一起抹除 永别了";

  @override
  Widget build(BuildContext context) {
    final appBar = AppBar(
      title: const Text("Want2BecomeMagicalGirl ! ! !"),
      backgroundColor: const Color(0xFFFFB6C1),
    );

    final input = TextField(
      controller: _controller,
      decoration: const InputDecoration(
        hintText: "Fill Magical Spell Here and Press enter...",
        filled: true,
      ),
      textAlign: TextAlign.start,
      onSubmitted: (spell) async {
        // 提交后立即清输入框
        _controller.text = "";
        await _checkAndSend(spell);
      },
    );

    final title = Text(
      _result.isEmpty ? "" : _result,
      style: const TextStyle(
        color: Colors.pink, fontSize: 16, fontWeight: FontWeight.w600,
      ),
    );

    return Scaffold(
      appBar: appBar,
      body: Container(
        padding: const EdgeInsets.all(16),
        alignment: Alignment.center,
        child: Column(
          mainAxisSize: MainAxisSize.max,
          crossAxisAlignment: CrossAxisAlignment.center,
          children: [
            input,
            title,
            const Expanded(
              child: Text(_lyrics),
            ),
          ],
        ),
      ),
    );
  }

  // 注意：补位方式不是标准 PKCS#7。反汇编逻辑是：
  // pad = 16 - (len & 0x0F); 若 pad == 0 则 pad = 16；
  // 然后生成长度为 pad 的字符数组，每个元素的“码点”是 (pad << 1)，
  // 把它们拼成字符串再附加到原串上。
  String _padToBlockSize(String s) {
    final len = s.length;
    var pad = 16 - (len & 0x0F);
    if (pad == 0) pad = 16;
    final codePoint = (pad << 1);               // 2,4,...,32
    final padStr = String.fromCharCodes(List.filled(pad, codePoint));
    return s + padStr;
  }

  static String _uint8ListToHex(Uint8List data) {
    // 反汇编是 MappedIterable + join，这里直写可读实现
    const hex = "0123456789abcdef";
    final b = StringBuffer();
    for (final v in data) {
      b.write(hex[v >> 4]);
      b.write(hex[v & 0xF]);
    }
    return b.toString();
  }

  Future<void> _checkAndSend(String spell) async {
    // 原代码里存在一个 getSym() 的分支与反调试/校验，保留但只做存在性判断。
    final sym = getSym();        // ByteBuffer
    final symBytes = sym.asUint8List(); // 使用 _ByteBuffer::asUint8List
    // 反汇编判断: 某偏移+7 位置字节是否等于 0xD6（214）；我们用兜底安全判断。
    final looksOk = symBytes.length > 7 && symBytes[7] == 0xD6;

    // 获取密钥（native 返回的 Iterable<int>）
    final keyInts = List<int>.from(getKey());
    final key = Uint8List.fromList(keyInts);

    // 固定 IV：偶数 2,4,6,...,32，然后取前 16 个字节（反汇编里有组 32 -> 取 16）
    final iv = Uint8List.fromList(List<int>.generate(16, (i) => (i + 1) * 2));

    // 配置 AES
    final aes = AesCrypt();
    aes.aesSetKeys(key, iv);  // 符合反汇编中 aesSetKeys(key, iv)
    aes.aesSetMode();         // 反汇编里单独调用，无参，采用库默认模式

    // 字符串补位（按该 App 的非常规规则），UTF-8 编码后加密
    final padded = _padToBlockSize(spell);
    final plain = utf8.encode(padded);
    final cipher = aes.aesEncrypt(Uint8List.fromList(plain));

    // 一段反调试：取 getSym() 的某 16 位值与 0xD6 异或判断，不满足就 pop()
    // 这里只保留结构，不主动退出 App，避免影响调试：
    if (looksOk) {
      // 原代码里 true 路径会可能调用 SystemNavigator.pop();
      // SystemNavigator.pop();
    }

    // 转 hex 发送到原生（反编译显示：invokeMethod(methodName = hex, arguments = null)）
    final hex = _uint8ListToHex(cipher);
    final resp = await bridge.send(hex);

    // 对比返回字符串
    const okSig = "8sAFX45zT7uc0vSUyFNNly1h/d5zTt89tV3kcVr5P5n7lRKPyYtxg31zYNB2lPV0c5nf/x2/IK94XV9Ufs9XfaDG5IXxMlZy+Z2nE+ZZRFBSpMoKzQXfUq2TSjJJfQxV";
    final msg = (resp == okSig)
        ? "You have become a magical girl ! !"
        : "This spell has no magic power";

    setState(() => _result = msg);
  }
}

这里可以直接看到密文
8sAFX45zT7uc0vSUyFNNly1h/d5zTt89tV3kcVr5P5n7lRKPyYtxg31zYNB2lPV0c5nf/x2/IK94XV9Ufs9XfaDG5IXxMlZy+Z2nE+ZZRFBSpMoKzQXfUq2TSjJJfQxV

main.dart

import 'package:flutter/material.dart';
import 'EditView.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    // 主题来自反汇编的配色，做了适度精简
    final primary = const Color(0xFFFFB6C1); // 4294948545
    final accent  = const Color(0xFFFF69B4); // 4294928820

    return MaterialApp(
      title: '可爱编辑器',
      theme: ThemeData(
        useMaterial3: true,
        primaryColor: primary,
        appBarTheme: AppBarTheme(
          backgroundColor: primary,
          titleTextStyle: const TextStyle(
            color: Colors.white,
            fontSize: 22,
            fontWeight: FontWeight.w600,
          ),
        ),
        floatingActionButtonTheme: const FloatingActionButtonThemeData(),
        cardTheme: const CardTheme(),
        buttonTheme: const ButtonThemeData(),
        colorScheme: ColorScheme.fromSeed(seedColor: accent),
      ),
      home: const MyEditText(),
    );
  }
}

hook 120s 的弹窗,把按钮设置为可点击 true

Java.perform(function() {
    // 获取 android.widget.Button 类
    const Button = Java.use("android.widget.Button");
    // Hook setEnabled(boolean) 方法
    Button.setEnabled.implementation = function(enabled) {
        // 打印传入的原始参数值
        console.log("setEnabled called with argument: " + enabled);

        console.log("Forcing button to be enabled.");

        this.setEnabled.call(this, true);
    };
});

在 __int64 __fastcall magical_girl_aes_crypt_null_safe__Aes::aesEncryptBlock_28d5bc(__int64 a1) 里面发现 AES 是魔改了的,S 盒换了，列混淆和轮密钥加交换了顺序
